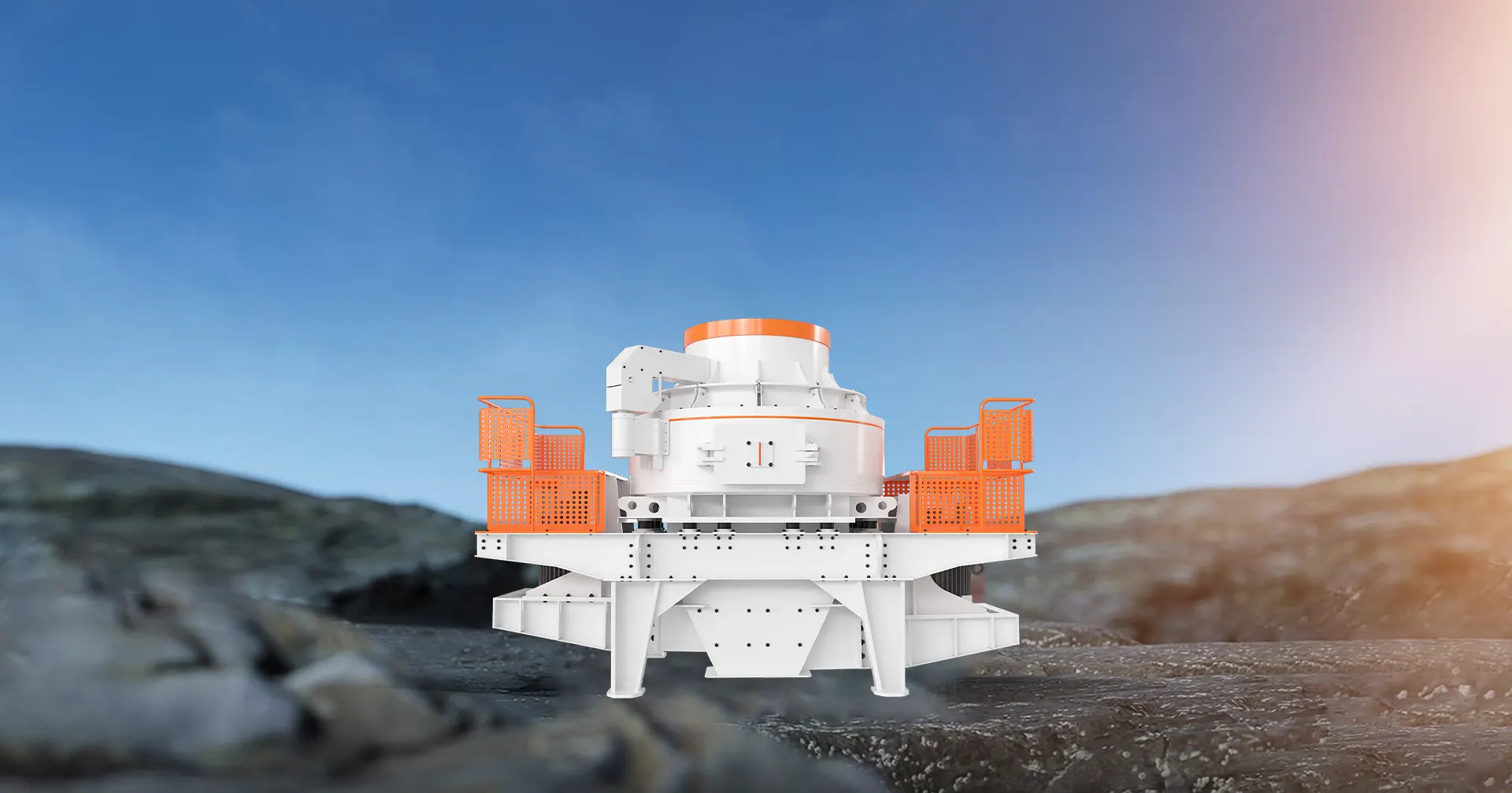

VSI series vertical shaft impact crusher (new type sand making machine) is a high-level sand making machine developed after several technical improvements based on the introduction of advanced German technology by our company and the actual situation of domestic sand making production. equipment. The equipment is especially suitable for providing sand and gravel aggregates for high-rise buildings, highway (railway) construction, municipal engineering, large-scale water conservancy facilities, concrete mixing stations and many other fields.

It is the key equipment for artificial sand making to provide high quality sand aggregate for building, highway, construction, concrete batching plant, etc.

The hot sale sand making machine includes artificial sand making machine, silica sand making machine, plaster sand making machine.

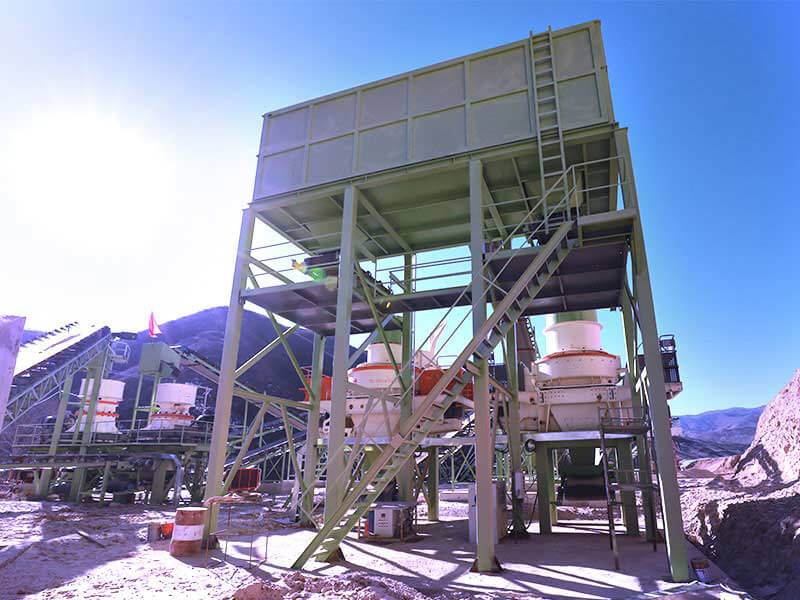

We also provide complete sand making production line, which includes sand making machine, sand washing machine, sand screen machine, vibrating feeder, belt conveyor,etc.

0-5mm、5-10mm、10-20mm、20-50mm

It can crush more than 100 kinds of rocks. The common discharge size is...

High yield and good grain shape

Large processing capacity, high output, cubic product, good grain shape, reasonable gradation, adjustable fineness modulus, especially suitable for artificial sand making and stone shaping, compared with traditional equipment with the same power, the output is increased by 30% .

Good energy saving effect

The parts of the equipment adopt new design and materials, which are not only wear-resistant but also more convenient to use with the whole machine.

Wide range of applications

VSI sand making machine is easy to operate and energy-saving, which not only meets the quality requirements of construction sand, but also makes up for the technical defects of the sand making industry, and can be combined and classified according to the different needs of users, which can meet the different process needs of users.

Thin oil lubrication, automatic maintenance

The German original thin oil lubrication station is used, and the double oil pumps complement each other to ensure oil supply, no oil flow, and automatic shutdown when there is no oil pressure; oil cooling and heating devices ensure that the bearing lubrication is always in good condition, so as to completely solve the problem of bearing heating, so that the main shaft bearing Maintain a constant temperature for extended maintenance intervals and service life.

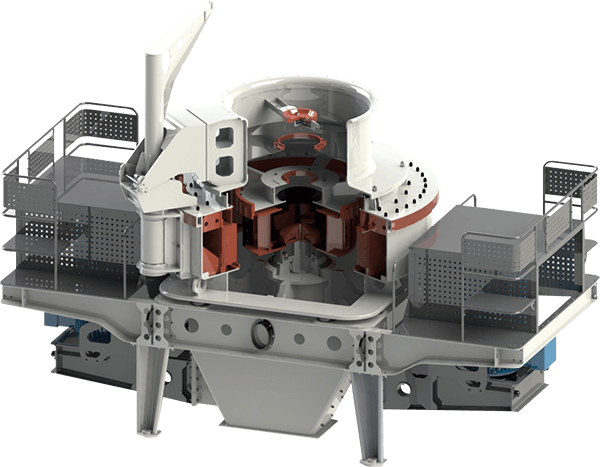

VSI vertical shaft impact sand making machine uses high-speed moving materials to crush each other and the friction between materials. The material falls into the feeding hopper of the sand making machine, enters the high-speed rotating wheel through the central feeding hole, is rapidly accelerated in the wheel, and its acceleration can reach dozens of times the acceleration of gravity, and then is ejected from the wheel at high speed. Another part of the material that falls freely after the rebound hits, and then hits the material lining (stone hits stone) or counterattack block (stone hits iron) together, and is rebounded and hits the top of the vortex chamber obliquely upward, and then changes its movement direction, deflecting to It moves downward and collides with the material emitted from the impeller channel to form a continuous material curtain. In this way, a piece of material is subjected to two or more chance impacts, friction and grinding and crushing in the eddy current crushing chamber, and the crushed material is discharged from the lower discharge port.

Model		VSI-7611	VSI-8518	VSI-9526	VSI-1140
Capacity(t/h)	Cascade and Center Feeding	120-180	200-260	300-380	450-520
Capacity(t/h)	Center Feeding	60-90	100-130	150-190	225-260
Feeder Opening Size (mm)	Soft Material	≤35	≤40	≤45	≤50
Feeder Opening Size (mm)	Hard Material	≤30	≤35	≤40	≤45
Rotation Speed		1700-1890	1520-1690	1360-1510	1180-1310
Power of the Double Motors(kw)		110-150	180-220	264-320	400-440
Overall Dimension(mm)		3700x2150x2100	4140x2280x2425	4560x2447x2778	5000X2700X3300
Weight (t)		7.8	10.3	16	25.6
Power		380V:50Hz
Vibrating Sensor		Inspection Scope: 0.1-20mm/s,it can be adjusted continuously
Thin oil lubrication station	Power of Double Oil Pump	2×0.31kw
	Safety	supply of oil; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter
	Overall Dimension (mm)	820×520×1270
	Power of Oil-box HeaterDimension (kw)	2KW
