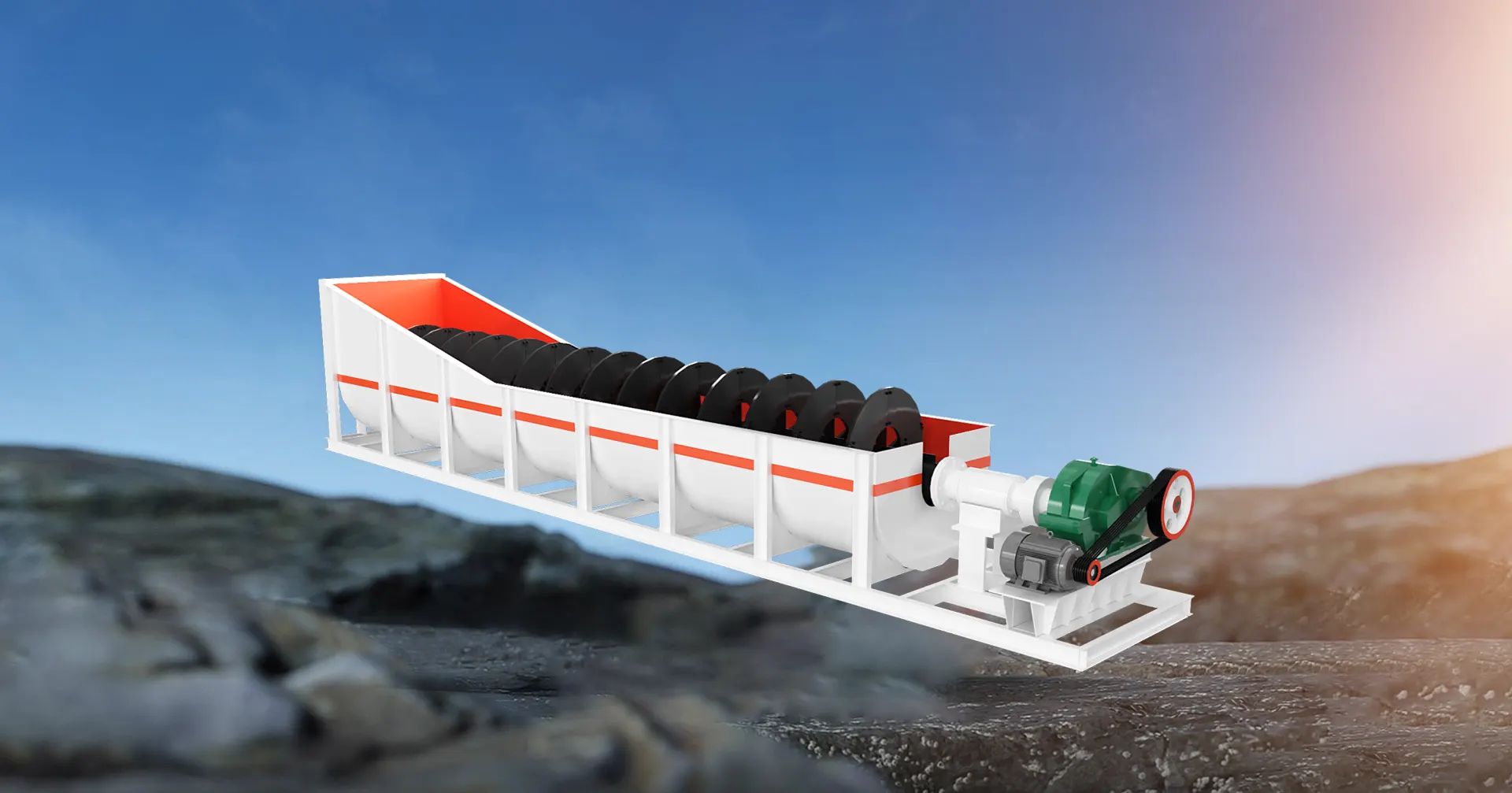

Spiral Sand Washing Machine

Get Price List

≤10mmFeeding Size

5-350t/hProcessing Capacity

Position: Home>Products>Sand Maker And Washer

PRODUCT INTRODUCTION

Spiral sand washing machine is divided into double helix and single spiral. Can be cleaned and separated from the gravel in the soil and debris, its novel sealing structure, adjustable overflow weir plate, reliable transmission device to ensure the effect of cleaning dehydration. Widely used in highway, hydropower, construction and other industries of washing, grading, impurity, and fine-grained and coarse-grained material washing and other operations, the construction and road construction with gravel is particularly appropriate.

0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Washing and classification with high precision

The professionally designed guide plate and adjustable long overflow weir plate, together with the optimized screw speed, make the material washing and grading more accurate.

Good dehydration effect

The optimally designed discharge groove can ensure the removal of the moisture limit in the material.

Simple structure and strong adaptability

The machine is simple in structure and stable in operation, and can be suitable for various working environments.

Long lasting

The machine has few wearing parts, low failure rate and long service life.

WORKING PRINCIPLE

Material from the top of the machine into the high-speed rotation of the impeller, under the action of high-speed centrifugal force, and another part of the umbrella-shaped flow in the impeller around the material to produce high-speed impact and crushing, the material after the impact, Between the chassis to form the eddy current several times the impact of each other, friction and smash, from the lower part of the direct discharge, the formation of closed loop many times, by the screening equipment control to achieve the desired finished product size.

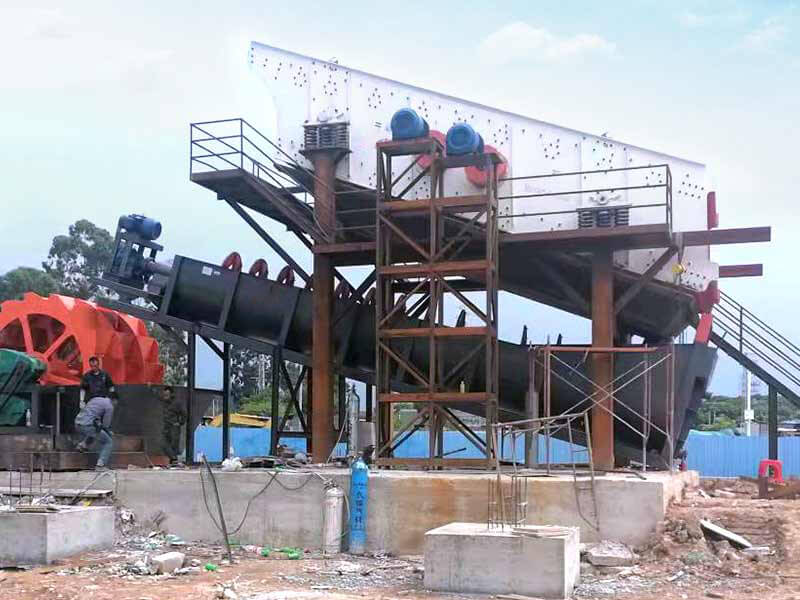

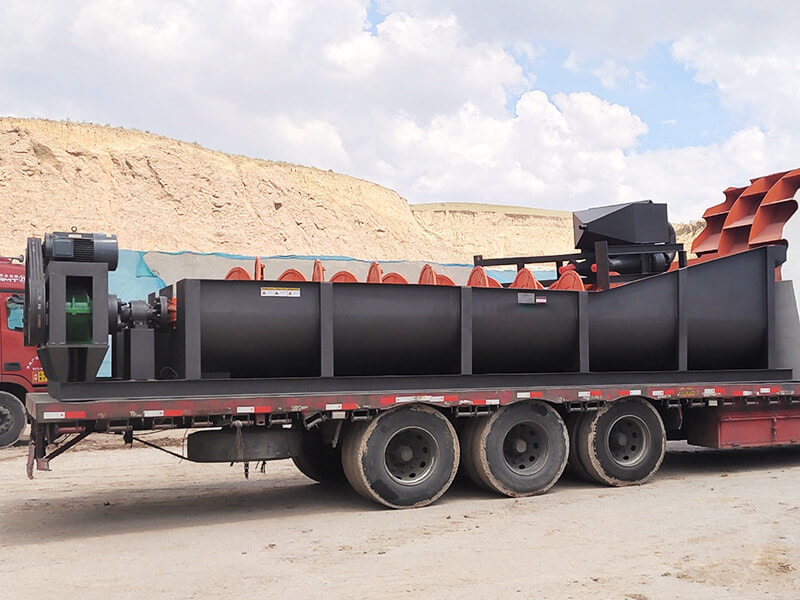

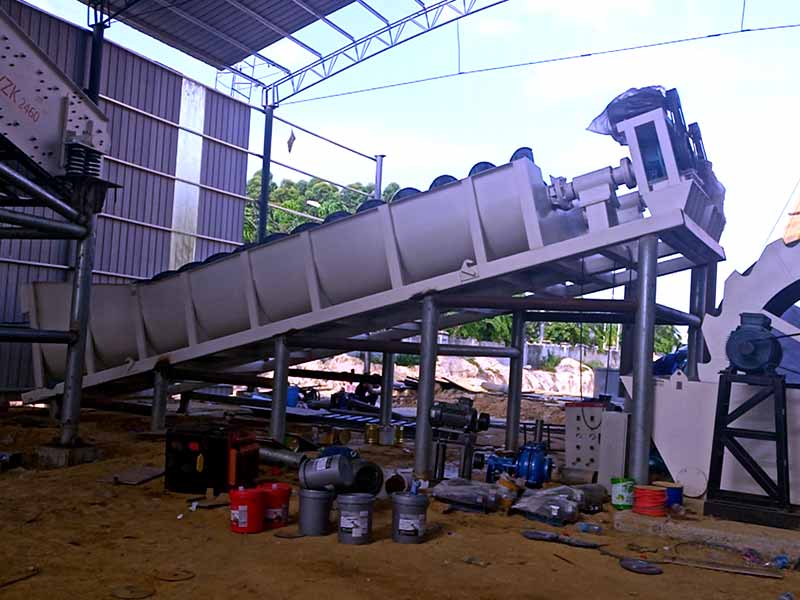

Product Photos

technical specifications

Model	Screw Diameter(mm)	Sink Length(mm)	Feeding Size(mm)	Screw Speed(r/min)	Capacity(t/h)	Power(kw)	Water Consumption(t/h)	Overall Dimension(mm)
XL515	515	7615	≤10	38	5-15	5.5	6-60	8100X2345X1450
XL765	765	7620	≤10	26	20-60	11	9-63	8545X2650X1870
XL920	920	7585	≤10	100	40-110	11	10-80	8500X2100X3600
2XL920	920	7585	≤10	200	80-220	2X11	20-160	8420X3760X3960
XL1120	1120	9750	≤10	175	50-130	18.5	20-150	10780X3980X4170
2XL1120	1120	9750	≤10	350	100-260	2X18.5	40-300	10970X5250X4720

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
