Tire Mobile Crushing Station

Get Price List

50-940mmFeeding Size

90-650t/hProcessing Capacity

Position: Home>Products>Mobile Crushing Plant

PRODUCT INTRODUCTION

Tire-type mobile crushing plant is a new type of mobile crushing equipment, which can supply the customers the best crushing and screening solutions. Considering from the customers’ standpoint, efficiently integrates the feeding equipment, crushing equipment, screening equipment, effectively solving the site constraints of the fixed crushing plants. It not only avoids the site infrastructure, but also expands the material stack space due to the compact equipment layout. Mobile crushing plant has the obvious advantages of crushing while moving, winning more and more customers’ recognition, Mobile crushing plant is divided into mobile jaw crusher plant, mobile impact crusher plant, mobile cone crusher plant, which is widely used in the road and bridge construction, urban construction, metallurgy, energy, and other crushing and screening industries.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

1. Stable performance.

2. Moving flexible and High efficiency.

3. Compact structure and occupy less space.

4. Shorter transportion time and lower installation cost.

5. Flexible parking function, quickly access to the operating mode.

6. Versatile body combining alternative equipment can meet customers personalized needs.

7. The tire-type mobile crushing plant has the series of specifications, based on different requirements of the crushing process composed of "first crushing after screening" or "first screening after crushing" process. The crusher which can be combined in accordance with the actual needs of coarse crushing or fine crushing, can also be combined into coarse screening ,medium screening and fine screening system with high flexibility, can meet the needs of different customers.

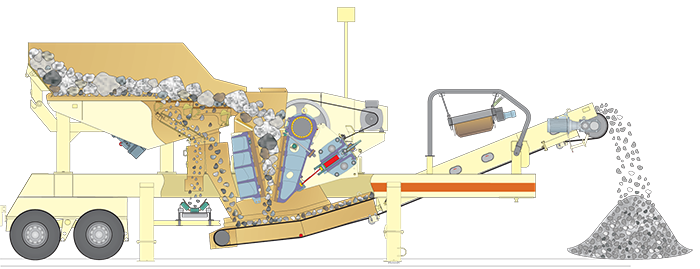

WORKING PRINCIPLE

When working, the materials are evenly transported into the crusher by the feeder. After the crusher performs preliminary crushing, a closed-circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the materials, and the finished materials are output by the conveyor for continuous crushing operation. The mobile jaw crusher can remove the circular vibrating screen according to the actual production needs, and actually firstly crush the material directly, and it is flexible and convenient to use in conjunction with other crushing equipment.

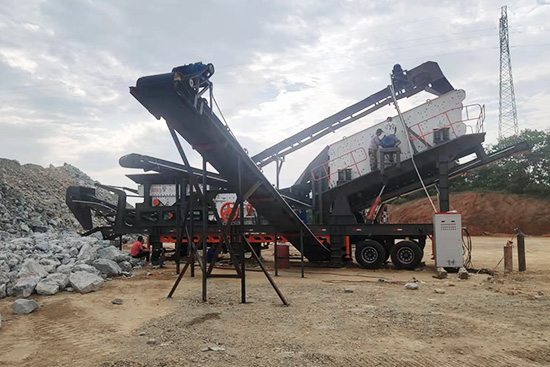

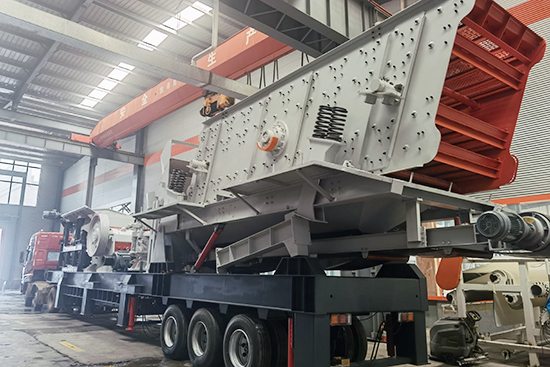

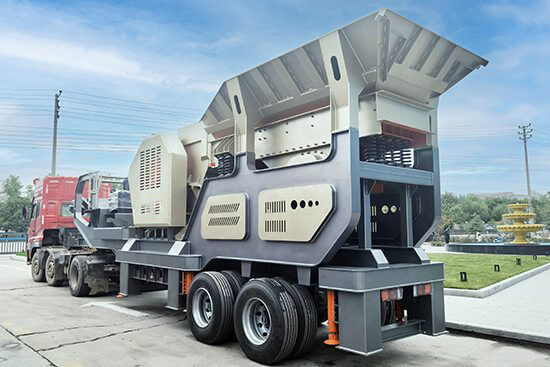

Product Photos

technical specifications

The Standard Model	Corollary Equipment	Corollary Equipment			Transport Dimension(mm)
The Standard Model	Corollary Equipment	Model	Feeding Size(mm)	Capacity(t/h)	Transport Dimension(mm)
S-CS75	3YZK1848	CS75	≤160	59-163	12600×2800×4400
S-CS110	3YZK1860	CS110	≤178	100-200	13800×3000×4400
S-CS160	3YZK2160	CS160	≤188	132-253	13800×3000×4400
S-CS220	3YZK2160	CS220	≤230	215-330	14500×3000×4500
S-Q300	3YZK1848	SQ300	≤160	105-205	12600×2800×4400
S-Q400	3YZK1860	SQ400	≤230	235-575	13800×3000×4400
S-Q500	3YZK2160	SQ500	≤240	304-640	14500x3000x4600
S-H420	3YZK1848	SH420	≤240	85-170	12600×2900×4400
S-H430	3YZK1860	SH430	≤360	120-345	13800×3000×4500
S-H440	3YZK2160	SH450	≤450	255-605	14800×3200×4600
S-HP100	3YZK1860	SHP100	≤140	75-140	13800×2900×4300
S-HP200	3YZK2160	SHP200	≤185	145-250	14200×3000×4500
S-HP300	3YZK2160	SHP300	≤230	220-440	16500×3200×4600
S-PF1214	3YZK1860	PF1214	≤300	100-200	14500×2900×4500
S-PF1315	3YZK2160	PF1315	≤350	130-280	15200×3000×4500
S-PF1320	3YZK2460	PF1320	≤500	180-400	15200×3000×4500
S-S1860		3YZK1860	≤400	65-586	10500×2700×4200
S-S2160		3YZK2160	≤400	81-720	10500×3000×4500
S-S2460		3YZK2460	≤400	100-810	10500×3200×4500

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
