Mobile Cone Crushing Plant

Get Price List

50-200mmFeeding Size

20-180t/hProcessing Capacity

Position: Home>Products>Mobile Crushing Plant

PRODUCT INTRODUCTION

This equipment can be directly driven to any position of the workplace, and the granularity of finished products can be flexibly adjusted according to customer needs, with low cost and good income.

Mobile cone crusher with a cone crusher as the main rock crusher equipment.In the application of mobile crushing station, it is equipped with high performance and high-capacity CS cone crusher and HP Serious Hydraulic Cone Crusher in two-stage and three-stage fine crushing.Mobile cone crusher can achieve high productivity,large crushing ratio and excellent grain shape.

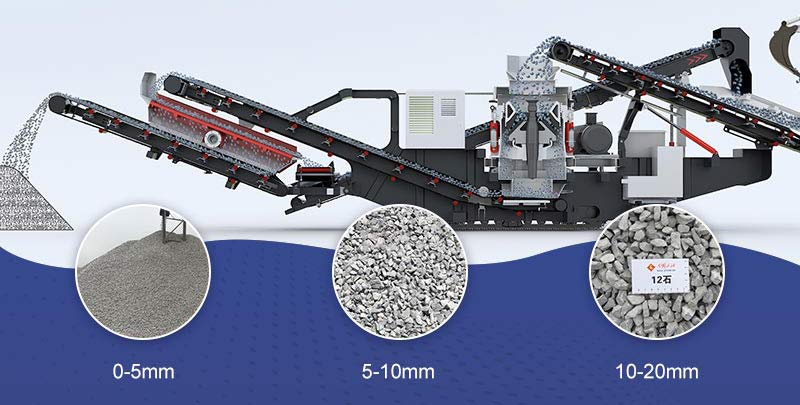

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

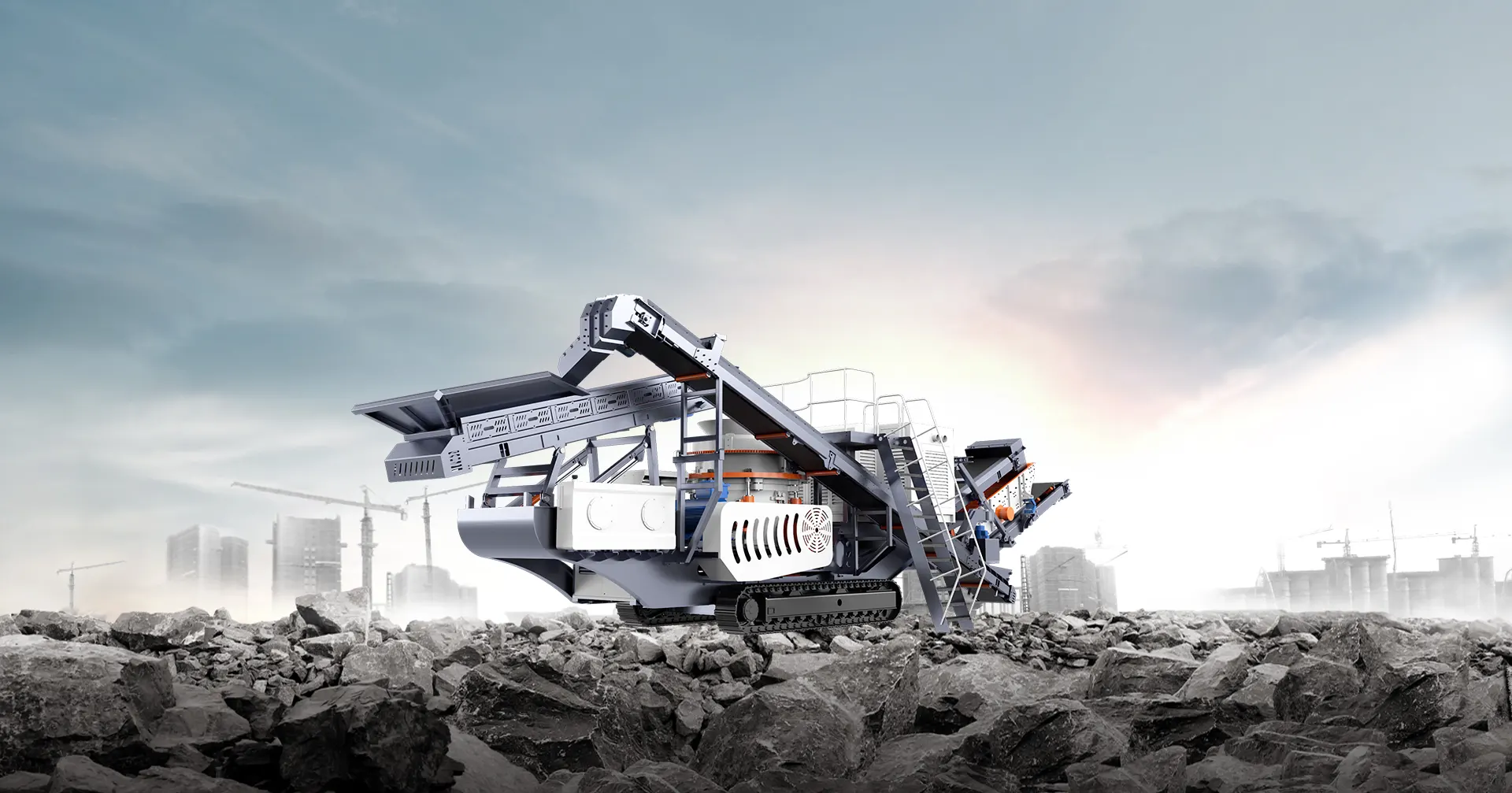

High strength, low grounding ratio, good passability

The chassis adopts a crawler-type full-rigid ship-type structure with high strength, low ground-to-ground ratio and good passability. It can adapt to mountains, wetlands and other landforms, and has good adaptability.

Light weight and small size

Crawler-type mobile crushing station products are light in weight and small in size. The whole machine adopts all-wheel drive, which can realize in-situ steering, especially suitable for work in narrow fields.

Can work uphill

Meet the crushing requirements of mines, hydropower stations, coal mines and other projects.

Tailored

Different scales of production and crushing operations can be tailored to meet the individual needs of customers; the particle size of finished products can be flexibly adjusted according to customer needs, with low cost and good income.

WORKING PRINCIPLE

Materials are evenly transported to cone crusher by vibrating feeder, after cone crusher makes primary crushing, a cycle system forms by circular vibrating screen, materials get cycle crushing, finished products are output by belt conveyor and continuous crushing operations go. Mobile cone crusher plant can remove circular vibrating screen based on the actual production, materials are directly made primary crushing, equipped with another crushers, it is convenient and flexible to operate.

WORKING PRINCIPLE

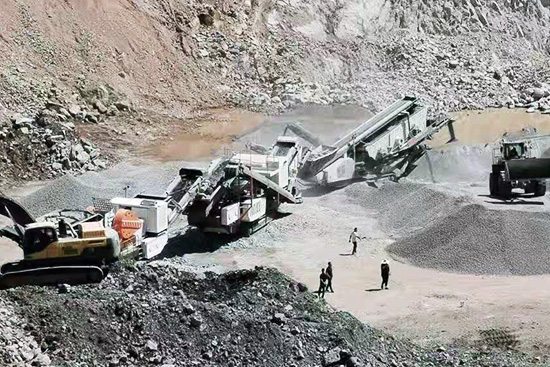

Product Photos

technical specifications

Model	THP300L	THP400L	TCH430
Feeding Machine
Specification	B1000*4.6m	B1200*4.6m	B1000*6.5m
Drive Mode	Inverter motor	Inverter motor	Inverter motor
Drive Mode	Reducer drive	Reducer drive	Reducer drive
Cone Crusher
Equipment	HP300	HP400	CH430
Max Feeding Size	200mm	260mm	185mm
Minimum Outlet	10mm	20mm	20mm
Motor Power	220KW	280KW	160KW
Frame
Hydraulic Tracked Chassis	60T	60T	60T
Boat Frame	Q345B Welding	Q345B Welding	Q345B Welding
Return screen
Specification	2YZK1500*3500	YK1500*3800	YK1530
Drive Mode	Vibration Motor 3.7KW	Vibration Motor 3.7KW	Vibration Motor 3.7KW*2
Main Belt Conveyor
Specification	B1200*12.5m	B1200*10.6m	B1200*10.6m
Drive Mode	Motor reducer drive 15KW	Motor reducer drive 15KW	Motor reducer drive 15KW
Looped polyester canvas strap	EP300-B1200x5(6.5+1.5)	EP300-B1200x5(6.5+1.5)
Under the screen belt conveyor
Specification	B1200*5.6m	B1200*6.2m	B1200*5.4m
Drive Mode	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW
Looped polyester canvas strap	EP300-B1200x3(4.5+1.5)	EP300-B1200x5(6.5+1.5)
Return belt conveyor
Specification	B500*12.5m	B650*12.5m	B500*12.5m
Drive Mode	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW
Looped polyester canvas strap	EP300-B500x3(4.5+1.5)	EP300-B500x3(4.5+1.5)
Transfer Belt Conveyor
Specification	B500*2.4m	B650*2.4m	B500*2.4m
Drive Mode	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4KW
Looped polyester canvas strap	EP200-B500x3(4.5+1.5)	EP200-B650x3(4.5+1.5)
Power System
Generator Set	400KW Generator Set	500KW Generator Set	305KW Generator Set
Electrical System
Electric control cabinet	The cone crusher motor starts with variable frequency, the feeder starts with variable frequency, and other motors start directly.	The cone crusher motor starts with variable frequency, the feeder starts with variable frequency, and other motors start directly.	The cone crusher motor starts with variable frequency, the feeder starts with variable frequency, and other motors start directly.
Hydraulic system
Belt conveyor folding cylinder	Hydraulic automatic lift	Hydraulic automatic lift	Hydraulic automatic lift
Hydraulic Pumps, Valves, Accessories	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
