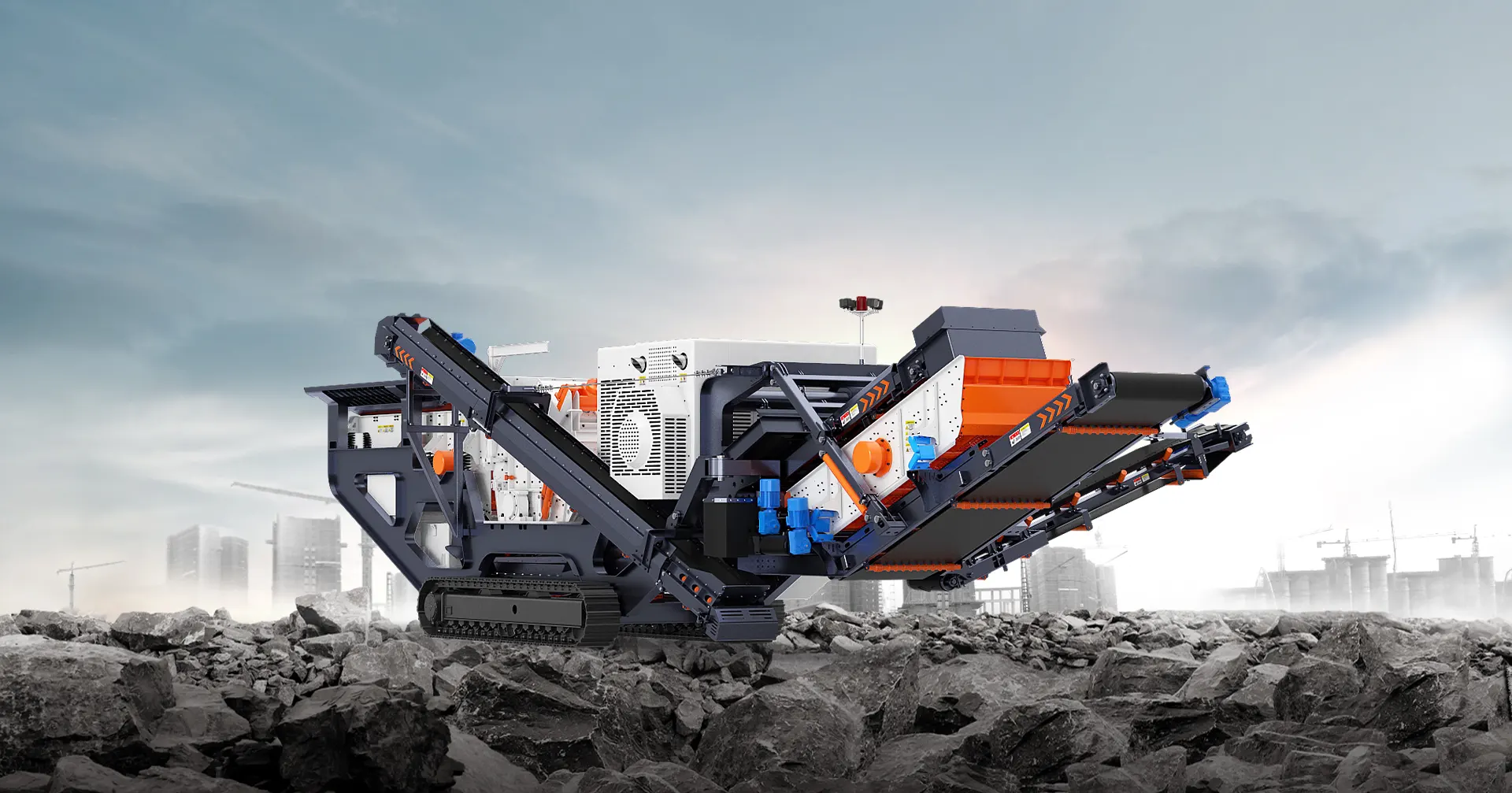

Crawler Mobile Crushing Plant

Get Price List

50-80mmFeeding Size

70-250t/hProcessing Capacity

Position: Home>Products>Mobile Crushing Plant

PRODUCT INTRODUCTION

Some Basic Information of Crawler Mobile Crushing Plant

Crawler mobile crushing plant is the company to meet the market demand, independent research and development of the full hydraulic drive crawler car chassis with mobile crushing and screening equipment. Crawler type moving crusher is mainly used for metallurgy, chemical industry, building materials, hydropower and other materials often need to relocate the operation, especially for highways, railways, hydropower projects such as the operation of the stone, the user can be processed according to the type of raw materials, Size and finished material requirements vary in a variety of configurations.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

1. Moving flexible and high efficiency.

2. Large torque travel motor, driving force, high reliability.Excellent performance,high reliability.

3. Efficient and mature crushing and screening equipment selection, compact structure, stable performance.

4. Full steel structure of the chassis, with high strength, lower than the characteristics of ground pressure, the mountains, wetlands have a good adaptabilityp.

5. Excellent performance of the power system, the use of Cummins diesel engine, low fuel consumption, low noise, reliable performance, providing a reliable, economical, environmentally friendly power source.

6. Mobile crusher can be combined in accordance with the actual needs of coarse crushing or fine crushing, and can also be combined into coarse screening ,medium screening and fine screening system with high flexibility, which can meet various needs.

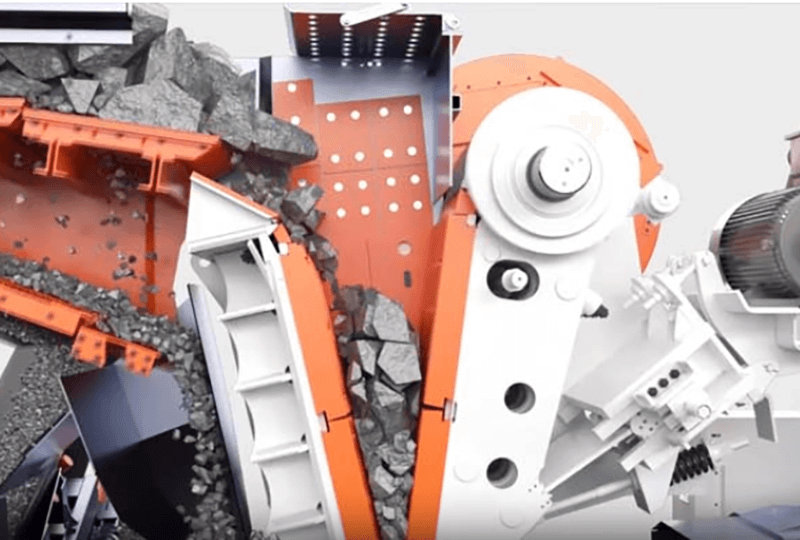

WORKING PRINCIPLE

The material is evenly transported to the crawler-type hydraulic driven crushing station by the bucket elevator through the feeder. After preliminary crushing by the crusher, a closed-circuit system is formed by a circular vibrating screen to realize the cyclic crushing of the material. output to achieve the purpose of production. The circular vibrating screen can also be removed according to the actual production requirements, and the material can be directly crushed initially, and then cooperated with other crushing equipment to operate.

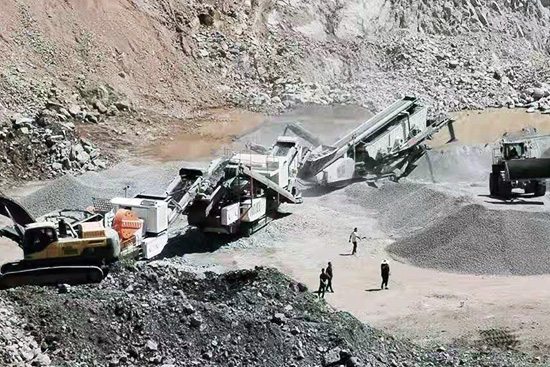

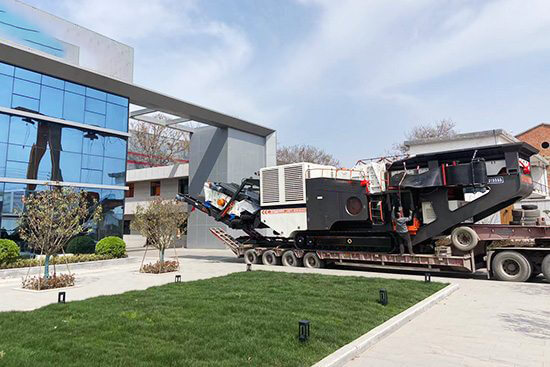

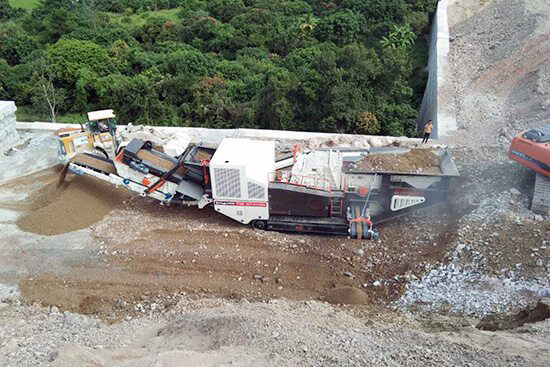

Product Photos

technical specifications

Model	TC96	TC106	TC116	TC120
Feeding Machine
Equipment	GZD9638	ZSW1042	GZD1142	GZD1248
Motor	5.5KW*2	7.5KW*2	7.5KW*2	7.5KW*2
Drive Mode	Motor Driven	Motor Driven	Motor Driven	Motor Driven
Crusher
Equipment	SC96	SC106	SC116	SC120
Max Feeding Size	550mm	650mm	700mm	800mm
Motor	90KW	110KW	132KW	160KW
Drive Mode	Motor Driven	Motor Driven	Motor Driven	Motor Driven
Frame
Hydraulic Tracked Chassis	35T	DL385V	DL385V	NS415E
Boat Frame	Q345B Welding	Q345B Welding	Q345B Welding	Q345B Welding
Main Conveyor
Stack Height(mm)	B1000*12.9m	B1000*12m	B1000*12m	B1000*12.9m
length x width(mm)	Motor reducer drive 11KW	Motor reducer drive 11KW	Motor reducer drive 11KW	Motor reducer drive 15KW
Main Belt Power(kw)	EP300-B1000*5(6.0+1.5)	EP300-B1000*5(6.0+1.5)	EP300-B1000*5(6.0+1.5)	EP300-B1200*5(6.0+1.5)
Unearthed belt conveyor
Specification	B650*6.8m	B650*6.8m	B650*6m	B650*6.8m
Drive Mode	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4KW
Looped polyester canvas strap	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)
Iron remover
Specification	RCYQ-13	RCYQ-13	RCYQ-13	RCYQ-13
Drive Mode	Motor reducer drive 3KW	Motor reducer drive 3KW	Motor reducer drive 3KW	Motor reducer drive 3KW
Power System
Generator Set	240KW Engine Block	300KW Engine Block	300KW Engine Block	300KW Engine Block
Electrical System
Electrical control cabinet	Soft start of jaw crusher motor, direct start of other motors, main electrical components Schneider	Soft start of jaw crusher motor, direct start of other motors, main electrical components Schneider	Soft start of jaw crusher motor, direct start of other motors, main electrical components Schneider	Soft start of jaw crusher motor, direct start of other motors, main electrical components Schneider
Hydraulic system
Silo	Hydraulic Automatic Folding	Hydraulic Automatic Folding	Hydraulic Automatic Folding	Hydraulic Automatic Folding
Belt conveyor folding cylinder	Hydraulic Automatic Folding	Hydraulic Automatic Folding	Hydraulic Automatic Folding	Hydraulic Automatic Folding
Hydraulic Pumps, Valves, Accessories	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
