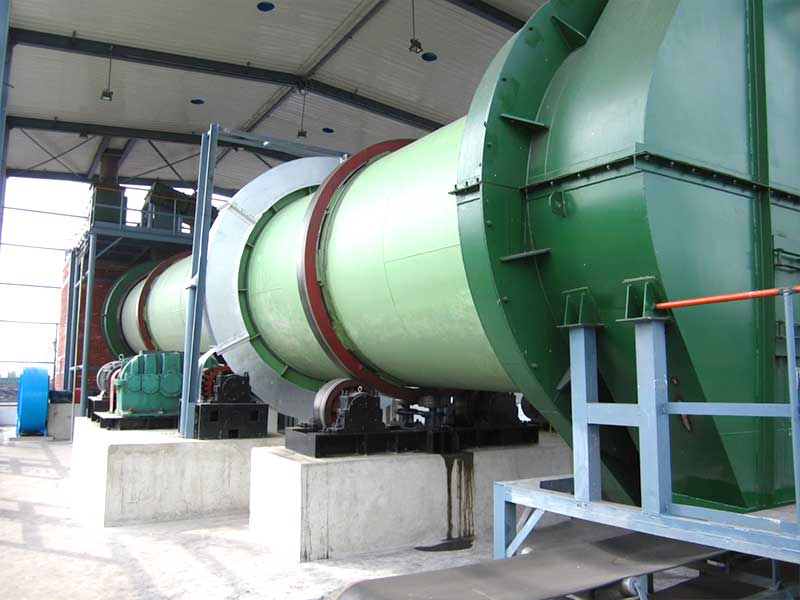

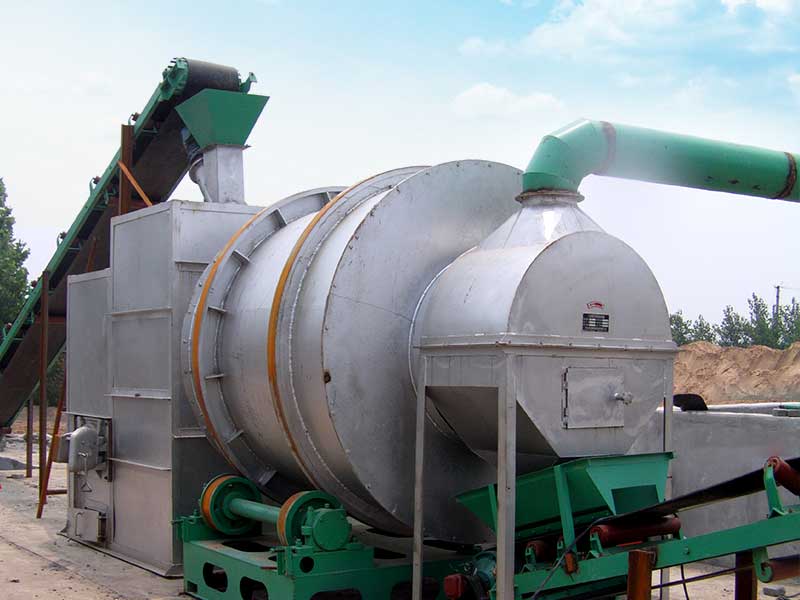

Rotary Dryer

small, medium and large models are in stock available

Feeding Size: 0-2mmProcessing Capacity: 3-20t/h

Hot model

Φ2.4×22Φ2.6×24Φ3.0×20Φ3.0×25

Output sizedifferent sizes for 120 kinds of stones

Chat Online Get Price List

Rotary dryer is used for drying metal concentrates, tail ore and grain. It is also conventional drying equipment in cement plant.

Φ1.2×8.0, Φ1.5×12, Φ1.8×14, Φ2.2×16, Φ2.4×18 are the hot-sale models.

Its production capacity can reach 1.9-76 t/h.

mineral ore, carbide mud residue, gravel, quartz sand, etc., can be processed.

It is widely used in mining, metallurgy, construction, cement and so on.

Rotary Dryer

1. Just leave us your email, or whatsapp, we send the latest price list to you. Whenever, 7X24 hours online service is waiting for you.

2. Tell us your requirement, then we prepare the quotation for you at once, including the cheap price and good quality.

3. Just compare with the other companies, our company will not let you down.

Spec./m(Dia.×Length)(m)	Shell Cubage(m³)	Capacity(t/h)	Installation Obliquity(%)	Highest Inlet Air Temperature(℃)	Main Motor(kw)	Totalweight(t)
Φ1.2×8.0	9	1.9-2.4	3-5	700-800	7.5	9
Φ1.2×10	11.3	2.4-3.0	3-5	700-800	7.5	11
Φ1.5×12	21.2	4.5-5.7	3-5	700-800	15	18.5
Φ1.5×14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ1.8×12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ1.8×14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ2.2×12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ2.2×14	53.2	11.4-14.2	3-5	700-800	22	36
Φ2.2×16	60.8	13.0-16.2	3-5	700-800	22	38
Φ2.4×14	63.3	13.5-16.9	3-5	700-800	37	45
Φ2.4×18	81.4	17.4-21.7	3-5	700-800	37	49
Φ2.4×20	90.4	19.3-24.1	3-5	700-800	45	54
Φ2.4×22	99.5	21.2-26.5	3-5	700-800	45	58
Φ2.6×24	127.4	27.2-34.0	3-5	700-800	55	73
Φ3.0×20	141.3	30.1-37.7	3-5	700-800	75	85
Φ3.0×25	176.6	37.7-47.1	3-5	700-800	75	95
Φ3.2×25	201	42.9-53.6	3-5	700-800	90	110
Φ3.6×28	285	60.8-76.0	3-5	700-800	160	135

Please tell us your needs such as the capaicty, materials, input and output size, we send the latest price list and quotation to you.

Chat online to get price list now
