Coarse Powder Mill

Coarse Powder Mill

Feeding Size
≤50mmFeeding Size
Processing Capacity
8-70t/hProcessing Capacity
Position: Home>Products>Grinding Equipment

PRODUCT INTRODUCTION

Coarse Powder Mill is mainly suitable for medium and fine crushing of various soft and hard ores whose compressive strength is not higher than 320MPa (megapascal), and is widely used in metallurgy, mining, chemical industry, cement, coal gangue, construction, sand making, refractory materials and Ceramics and other industrial and mining enterprises.



ZHM75、ZHM90、ZHM132

Best selling machine model

It can crush more than 100 kinds of rocks. The common discharge size is ...

Features

Crushing mill

It has both the performance advantages of the crusher and the pulverizer. Through the crushing, crushing and grinding operations, the crushing ratio is large, which can meet the user's requirements for 0-3mm coarse sand and coarse powder, and improve the particle size range of the finished product of the mill.

The particle size of the finished product is uniform

With its own grate screen, the stone that meets the particle size requirements can be directly discharged through the grate, and the unqualified stones continue to remain in the crushing cavity for repeated crushing to ensure uniform particle size of the finished product.

Low investment and easy to manage

The mechanical structure is compact, the technological process is simple, the floor space is small, the investment cost is low, and the management saves time and trouble.

Fast maintenance and long use

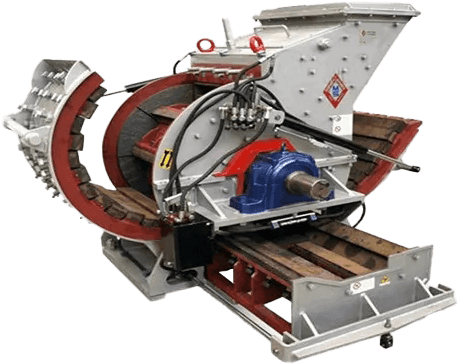

Equipped with hydraulic adjustment device, the roof can be opened front and rear, maintenance is convenient and fast, and the downtime is reduced; the lining plate is made of high manganese steel, which is resistant to compression and wear, and is durable.

WORKING PRINCIPLE

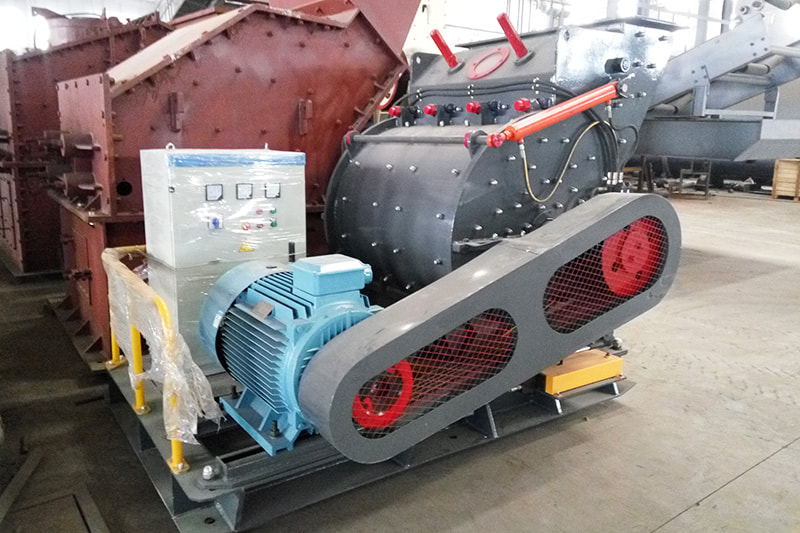

The Coarse Powder Mill is mainly composed of casing, rotor, bearing iron and grate bars. The main machine drives the main shaft through the motor and the V-belt, so that the rotor rotates, and the hammer head is stretched around by the centrifugal force generated by the rotation. The qualified crushed materials are discharged from the grate bar with a gap at the bottom, and the unqualified materials are left in the crushing cavity, and are repeatedly acted by the hammer and the bearing iron block until they can be discharged qualified. In order to avoid clogging, the water content of the crushed material is generally not more than 5%.

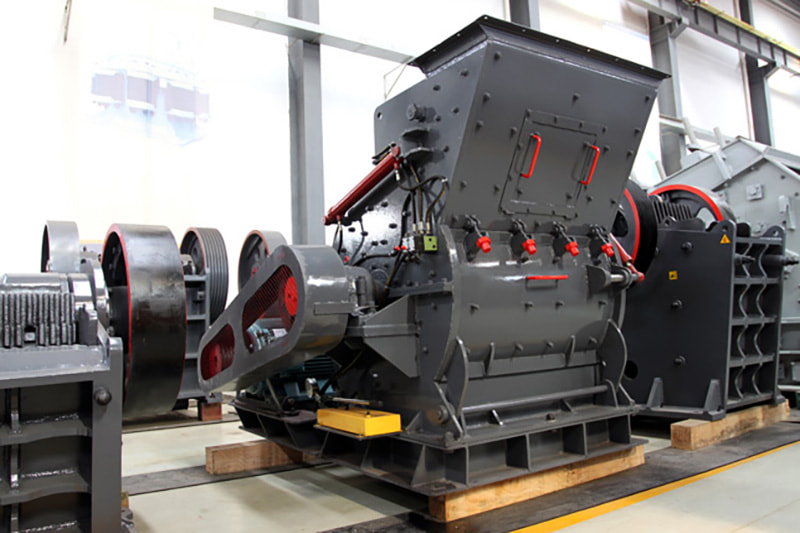

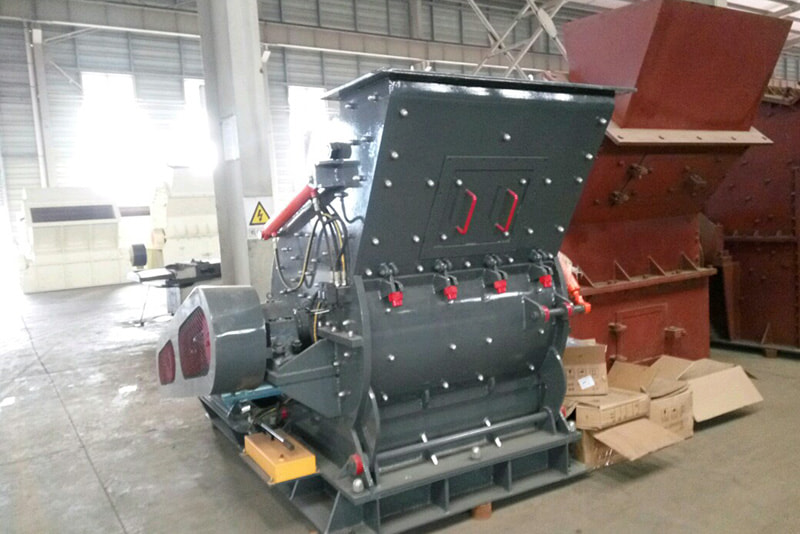

Product Photos

technical specifications

ModelZHM75ZHM90ZHM132
Rotor diameter/length(mm)750x800900x12001150x1500
Rotating speed(rpm)800-1000800-1000550-800
Maximum feed size(mm)≤30≤40≤50
Discharge particle size(mm)0-30-50-8
Capacity(t/h)8.0-1515-4040-70
Motor Power(kW)7590132
Motor modellevel 4level 4level 6

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
