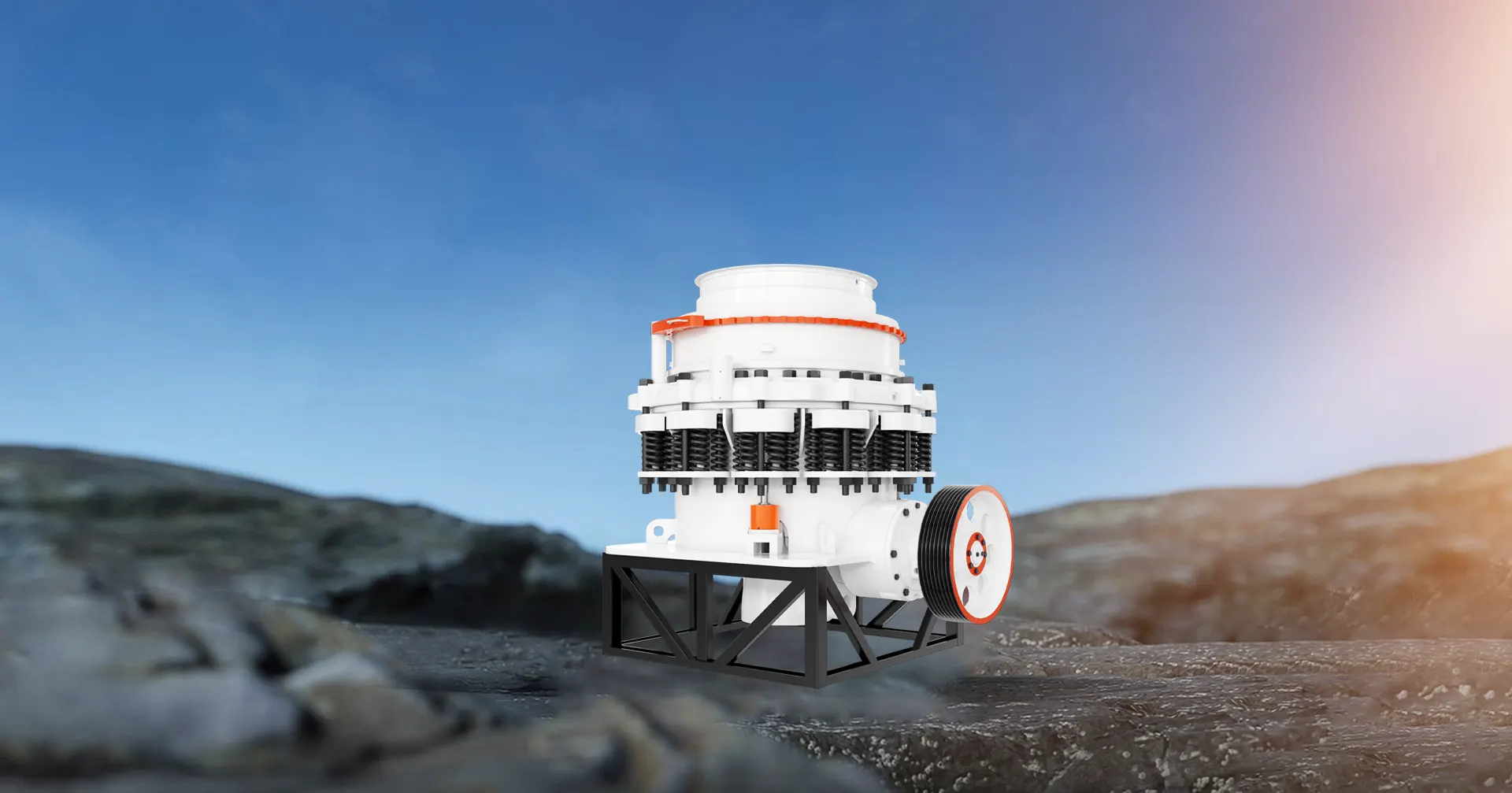

Spring Cone Crusher

Get Price List

≤300mmFeeding Size

40-800t/hProcessing Capacity

Position: Home>Products>Crushing Equipment

PRODUCT INTRODUCTION

Spring cone crusher is suitable for crushing various of mid-hard ores and rocks. This crusher has the advantages of reliable construction, high productivity, easy adjustment and less cost in operation. The spring release system of crusher acts an overload protection system that allows tramp to pass through the chamber without damage the crusher, use dry oil, water, two kinds of sealed formation. It made plaster stone and engine oil seprated, assured reliable performance,the type of crushing chamber depends upon the size of feed and fineness of the crushed product. The standard type is applied to medium crushing , the medium type is applied to medium or fine crushing and the short head is applied to fine crushing.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Simple structure and strong crushing force

The unit energy consumption is low, the crushing ratio is large, and the crushing effect is good.

Multi-purpose machine, green and environmental protection

The electric cooling system lubricating oil station is adopted, and the lubricating station realizes automatic control.

Safe and reliable operation

16 groups of high-performance alloy steel springs can effectively ensure the safety of the crusher.

Easy maintenance and low maintenance

All parts can be disassembled from the top or side, which is convenient for the disassembly of the fixed cone and moving cone assembly.

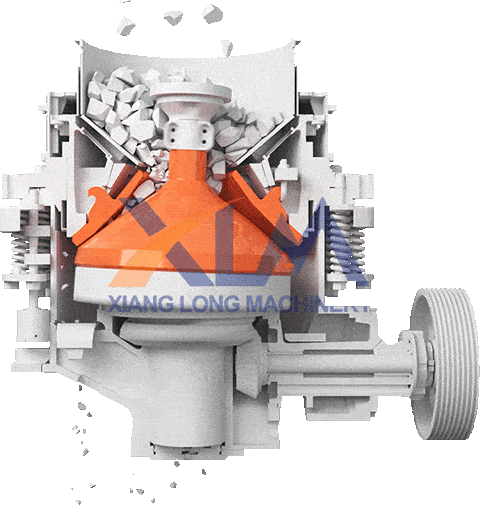

WORKING PRINCIPLE

Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the movable cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined adjusted.

Spring Cone Crusher

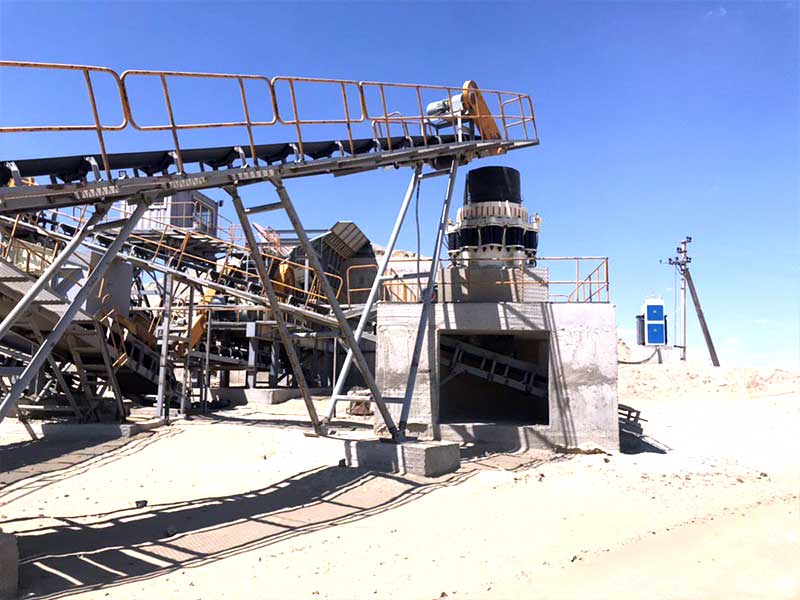

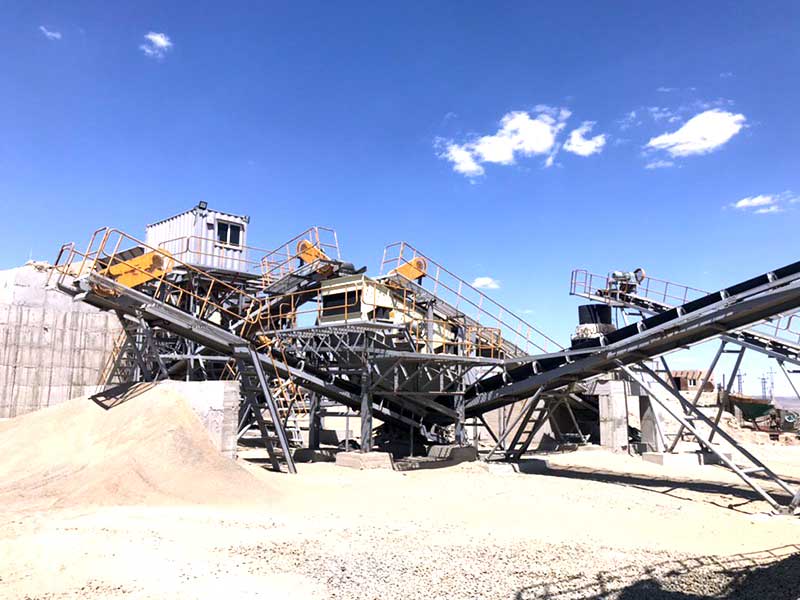

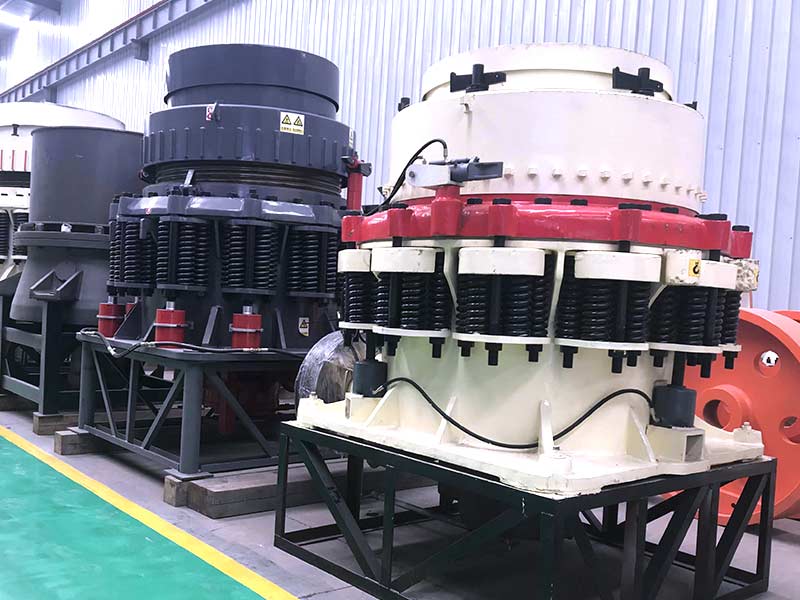

Product Photos

technical specifications

Model	Diameter of crushing cone(mm)	Feeding size(mm)	Adjusting Range of Discharge Opening(mm)	Capacity(t/h)	Power(KW)	Eccentric Shaft Rotate Speed(r/min)	Weight(t)	Overall Dimension(mm)
PYB600	Φ600	≤ 75	12-25	15-25	30	356	5	2234 x 1370 x 1675
PYD600	Φ600	≤ 35	3-13	5-23	30	356	5.3	2234 x 1370 x1675
PYB900	Φ900	≤ 115	15-50	50-90	55	333	11.2	2692 x1640 x2350
PYZ900	Φ900	≤ 60	5-20	20-65	55	333	11.2	2692 x 1640 x 2350
PYD900	Φ900	≤ 50	3-13	15-50	55	333	11.3	2692 x 1640 x 2350
PYB1200	Φ1200	≤ 145	20-50	110-168	110	300	24.7	2790 x 1878 x 2844
PYZ1200	Φ1200	≤ 100	8-25	42-135	110	300	25	2970 x 1878 x 2844
PYD1200	Φ1200	≤ 50	3-15	18-105	110	300	25.3	2790 x 1878 x 2844
PYB1750	Φ1750	≤ 215	25-50	280-480	160	245	50.3	3910 x 2894 x 3809
PYZ1750	Φ1750	≤ 185	10-30	115-320	160	245	50.3	3910 x 2894 x 3809
PYD1750	Φ1750	≤ 85	5-13	75-230	160	245	50.2	3910 x 2894 x 3809
PYB2200	Φ2200	≤ 300	30-60	490-750	260-280	220	80	4622 x 3302 x 4470
PYZ2200	Φ2200	≤ 230	10-30	200-580	260-280	220	80	4622 x 3302 x4470
PYD2200	Φ2200	≤ 100	5-15	120-340	260-280	220	81.4	4622 x 3302 x4470

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
