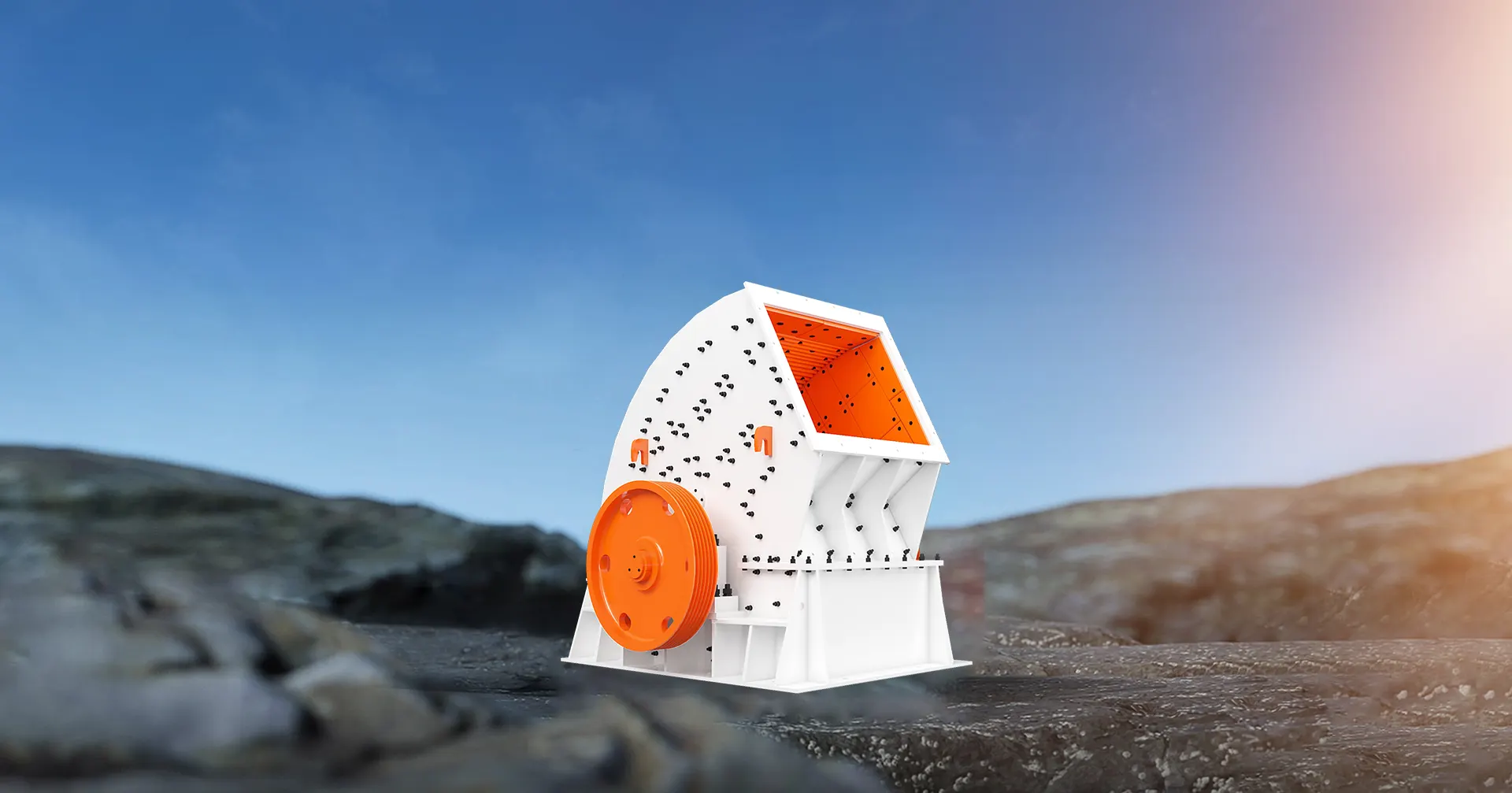

PCZ Heavy Hammer Crusher

Get Price List

≤1200mmFeeding Size

100-2500t/hProcessing Capacity

Position: Home>Products>Crushing Equipment

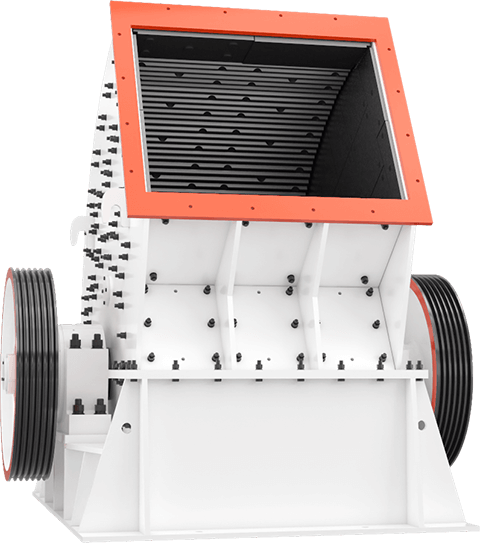

PRODUCT INTRODUCTION

One-time molding, no secondary crushing and shaping process is required, the cost can be reduced by about 40%, and the energy consumption is low.

The heavy-duty hammer crusher crushes the material by the collision of the high-speed hammer body and the material. It has the characteristics of simple structure, one-time forming, large crushing ratio, small product particle size and high production efficiency. It can be used for dry and wet crushing. It is suitable for It is used for fine crushing of medium hardness and brittle materials in mining, cement, coal, building materials, combustion and other departments. The hammer crusher can adjust the gap between the hammer head and the lining plate according to the user's requirements, and change the discharge particle size to meet the different crushing needs of different users, and is very popular among domestic and foreign users.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Reasonable gradation

Through three ingenious designs such as three counterattack zones, self-flow of finished materials, and adjustable trans-liners, the finished materials have reasonable gradation and low powder production, which can meet the diverse requirements of customers.

Easy maintenance

Eight-way hammer shaft hole, four-way spare, the body is equipped with an observation door, which is convenient to observe the operation. It is equipped with a hydraulic shaft puller, which is convenient for replacing the hammer head and hammer shaft.

Well made

All key components are protected by parts, processed by modern machinery and equipment such as gantry milling and presses, and a product technology department has been established to continuously improve processing technology and product quality.

Self-flow tank design, small powder yield

Leave a gap on the adjustable counterattack plate in the third counterattack zone, so that the material with a diameter smaller than the gap can flow out naturally, avoiding re-crushing, and greatly reducing the powder production rate while increasing the production capacity. It is an alternative to traditional Optional product for impact crusher.

WORKING PRINCIPLE

The electromotor drives the rotor to rotate with high speed in the crushing chamber. The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.

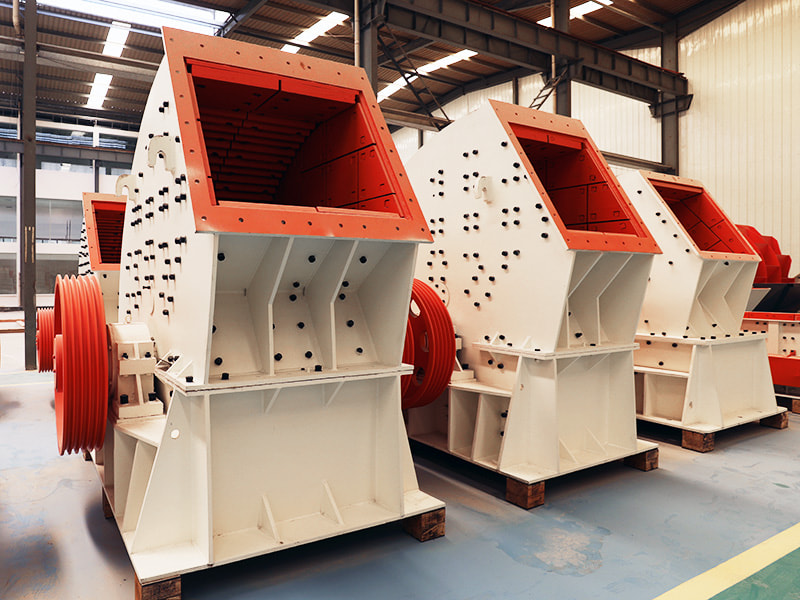

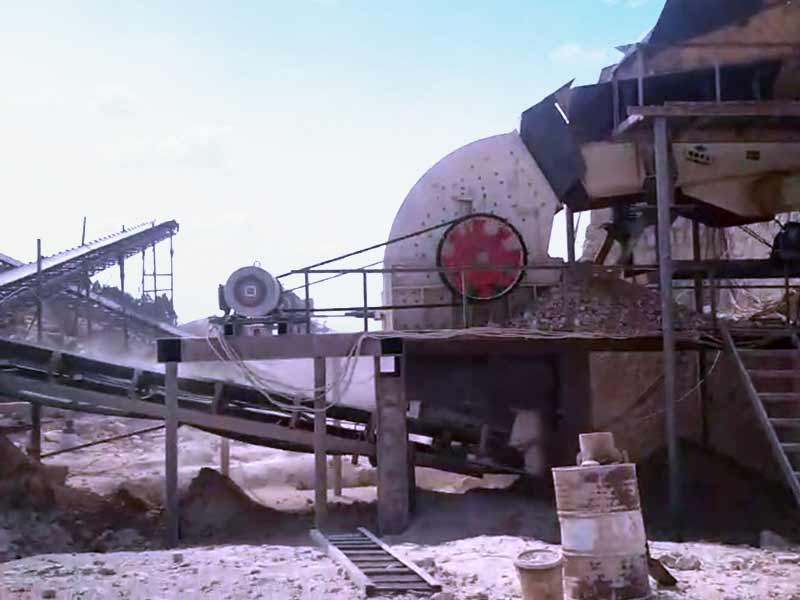

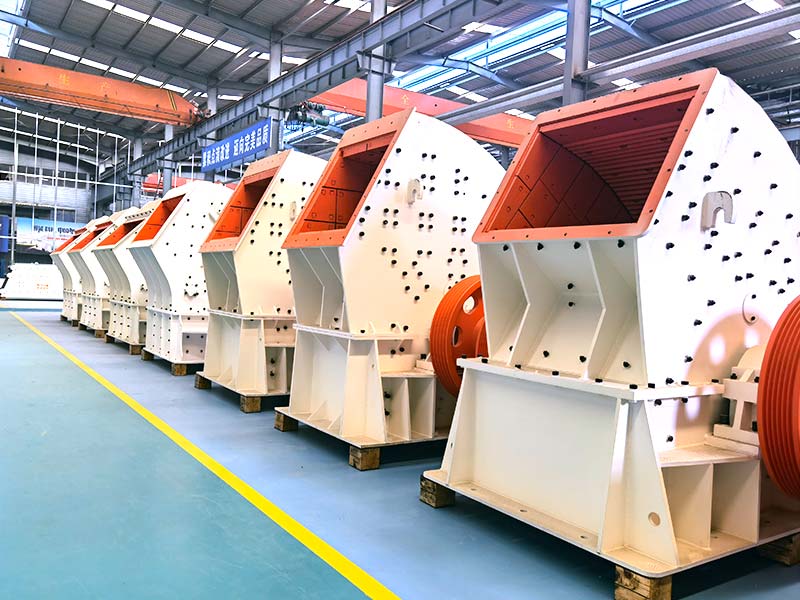

Product Photos

technical specifications

Model	Specification	Feed Opening Size(mm)	Max Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)	Overall Dimension(mm)
PCZ1310	1310X1050	890X1075	≤650	150-180	160	2950X2250X2495
PCZ1512	1500X1160	1200X900	≤600	250-400	(160kw-4)*2	3220X2520X2800
PCZ1615	1675X1510	1480X1200	≤650	400-800	(220kw-4)*2	3665X2915X3440
PCZ1620	1660X1900	2000X1200	≤800	800-1000	400KW*2	3500X3100X3200
PCZ1820	1800X1964	2000X1200	≤800	800-1500	800KW-6	3474X3822X3520
PCZ2020	1920X2000	2010X1200	≤800	1200-1600	800KW-6	4160X3920X3520
PCZ2125	2100X2486	2600X1690	≤1200	2000-3000	1250KW-6	5057X4565X4666
PCZ3032	3000X3220	3240X1840	≤1200	4500-6000	(1250KW-6)*2	6710X6122X6340

Model	Specification	Feed Opening Size(mm)	Max Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)	Overall Dimension(mm)
PC0910	900x1000	1070x750	≤150	150-200	(110kw-4)*2	2600x2200x2050
PC1012	1000x1180	1255x810	≤200	250-300	(132kw-4)*2	2800x2400x2300
PC1213	1200x1280	1350x900	≤200	300-350	(160kw-4)*2	2970x2625x2580
PC1216	1270x1490	1530x920	≤250	400-500	(200kw-4)*2	3070x2840x2580
PC1220	1220x1950	2000x920	≤250	500-700	(250kw-4)*2	3080x2280x2580
PC1622	1580x2150	2290x960	≤300	600-900	630kw-6	4095x3495x2960
PC1826	1752X2490	2550X1080	≤300	800-1200	800kw-6	4085X4250X3400
PC2026	2000X2490	2550X1170	≤300	1000-1500	1000kw-6	4490X4260X3725

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
