LF Series Big Cavity Impact Crusher

Get Price List

0-900mmFeeding Size

100-580t/hProcessing Capacity

Position: Home>Products>Crushing Equipment

PRODUCT INTRODUCTION

Large impact force, high crushing efficiency, excellent material selection and long service life

The impact crusher is named according to its working principle. It uses the principle of "stone hitting iron" to crush materials. It is a kind of crushing equipment that is finer than the jaw crusher. It is mainly used in the stone production line.

In medium and fine crushing operations, cooperate with jaw crusher for crushing. It has the advantages of large crushing ratio and cubic particles after crushing. It is widely used in building materials, ore crushing, transportation, energy, chemical industry and other industries for medium and fine crushing materials. The size of the discharge particles can be adjusted and the crushing specifications are diversified.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Wide adjustment range and diversified crushing specifications

The impact crusher can adjust the size of the discharged particles by adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber, etc., so as to realize the diversification of crushing specifications.

Energy saving and stable operation

Large feed inlet, high crushing cavity, complete crushing function, high production efficiency, stable output, energy saving and high yield.

Simple structure, easy maintenance

There are only 6 impact blow bars installed on the rotor of the impact crusher, and the blow bars can be easily replaced with special designed tools.

Consumable parts wear less and have a long service life

The wear of the blow hammer of the impact crusher only occurs on the side facing the material. When the rotor rotates, the material will fall to the surface of the blow hammer (strike surface). The back and side of the blow hammer will not be worn, even if it faces the material. There is also very little wear to the side of the material.

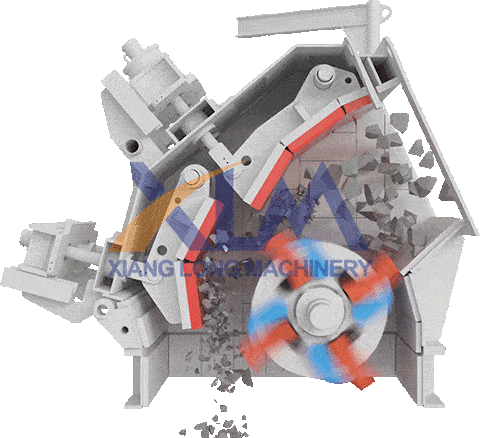

WORKING PRINCIPLE

The material is evenly conveyed into the jaw crusher by the feeder, the material after primary crushing by the jaw crusher is sent to the impact crusher through the conveyor for secondary crushing, and the crushed material is screened by the vibrating screen to meet the crushing requirements. The required materials are output by the conveyor, and the materials that do not meet the requirements enter the impact crusher again for crushing. The entire production line of the crawler-type jaw crusher + impact crusher mobile station forms a closed-circuit system through a circular vibrating screen to realize the cyclic crushing of the materials, and the finished materials are conveyed by Machine output, continuous crushing operation.

LF Series Big Cavity Impact Crusher

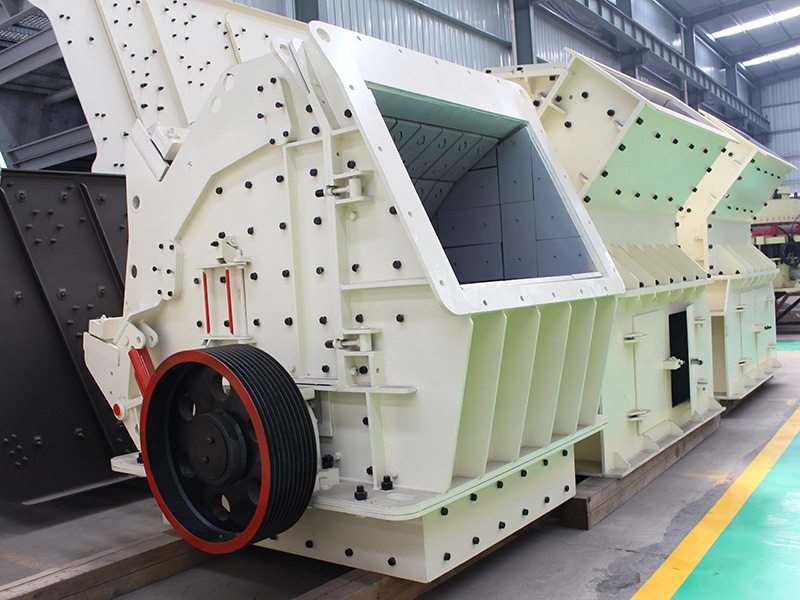

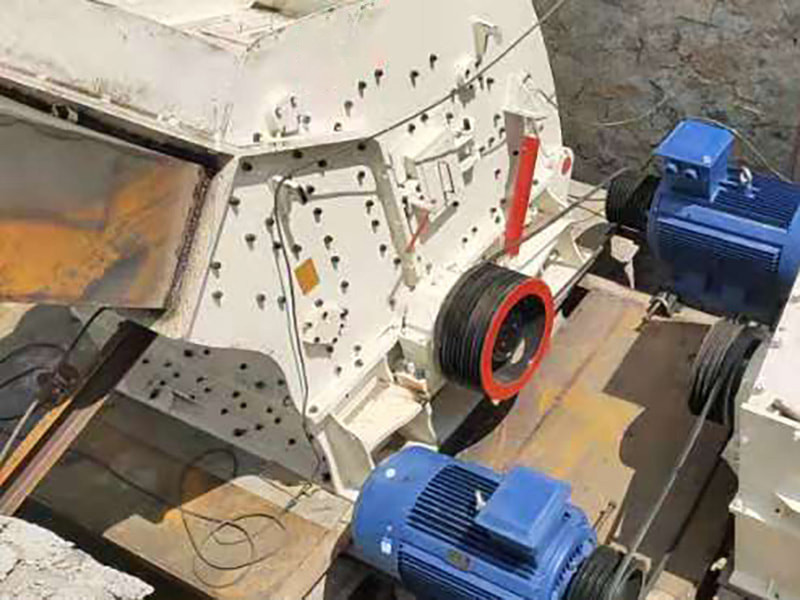

Product Photos

technical specifications

Model	Feeder Opening Size(mm)	Export Clearance(mm)	Discharge port size (mm)/Capacity(t/h)												Power(kw)
Model	Feeder Opening Size(mm)	Export Clearance(mm)	70	80	90	100	125	150	175	200	225	250	275	250	Power(kw)
JC100	1000×630	600	90-160	120-180	130-190	150-200	160-210	180-230							75
JC110	1100×850	720	180-240	200-265	220-295	245-320	300-385	350-455	400-520	460-590					110
JC125	1250×950	810				270-360	325-430	385-505	445-580	500-650	560-725	620-800			160
JC140	1400×1070	910					360-470	425-555	490-640	555-725	625-815	690-900	725-985		200
JC160	1600×1200	1020						490-640	560-730	635-825	710-920	780-1010	855-1105	930-1200	250
JC210	2100×1600	1360							800-880	900-1005	1000-1125	1100-1225	1200-1375	1300-1500	450

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
