PE Jaw Crusher

Get Price List

≤1200mmFeeding Size

20-1000t/hProcessing Capacity

Position: Home>Products>Crushing Equipment

PRODUCT INTRODUCTION

As an important equipment for coarse crushing in the crushing process, jaw crusher is one of our core products, and it is also a product with a long history in the company's production. Over the years, we have been focusing on the R&D and manufacturing of high-performance crushers, supported by several customers on site. The products have undergone several iterative upgrades, and the introduction of more advanced European technology has condensed the CJ series jaws that are currently at a high level in the market. crusher. CJ series jaw crusher adopts innovative modularized, non-welded structure frame, high-quality alloy steel castings and rolling bearings, which greatly improves the fatigue resistance and operational reliability of the equipment, and fully guarantees the high output, High efficiency and low cost, a variety of flexible installation methods to meet different application options.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Reliable equipment operation

Greater fatigue resistance, higher reliability, and longer service life provide a good operating environment for the equipment.

High output and crushing ratio

The crushing ratio is large and the operation is stable, which fully guarantees the high output and high efficiency of the crushing operation.

Easy maintenance

The operation is simple and the adjustment is quick, which reduces the maintenance cost and labor cost of the equipment.

The adjustment of the discharge opening is quicker and more convenient

Discharge port gasket adjustment, simple, reliable and easy to maintain.

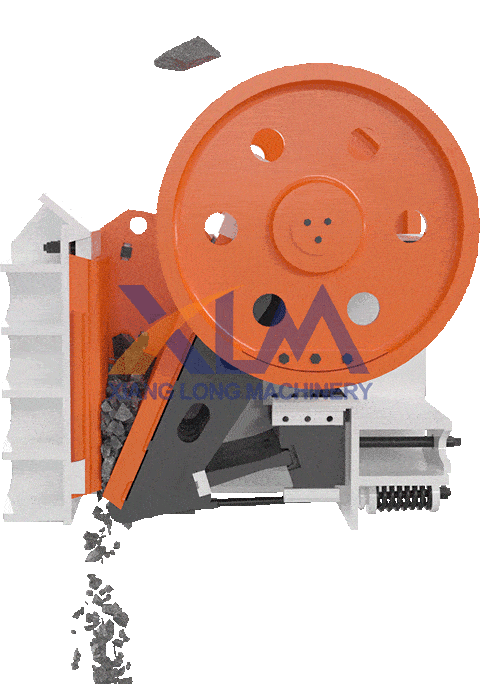

WORKING PRINCIPLE

The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw is When the movable jaw goes down, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw is on the tie rod. Under the action of the spring, it leaves the fixed jaw plate. At this time, the crushed material is discharged from the lower opening of the crushing cavity. With the continuous rotation of the motor, the crushing jaws do periodic motion to crush and discharge materials to achieve mass production.

PE Jaw Crusher WORKING PRINCIPLE

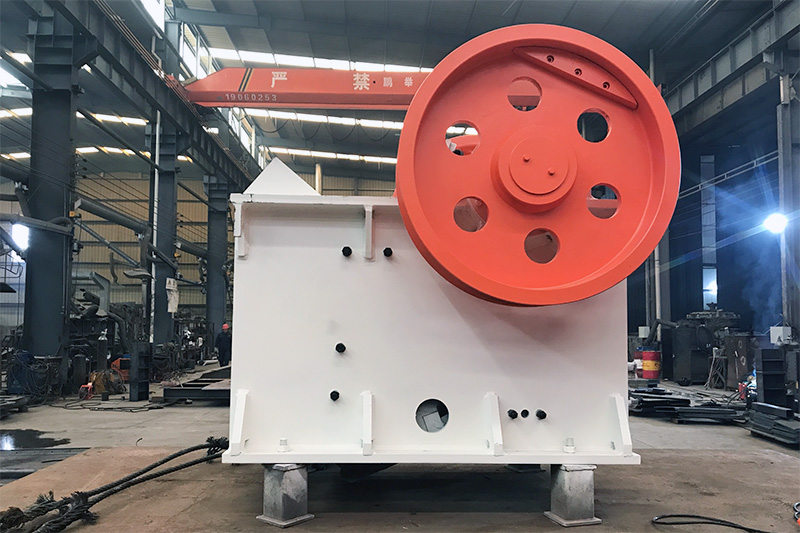

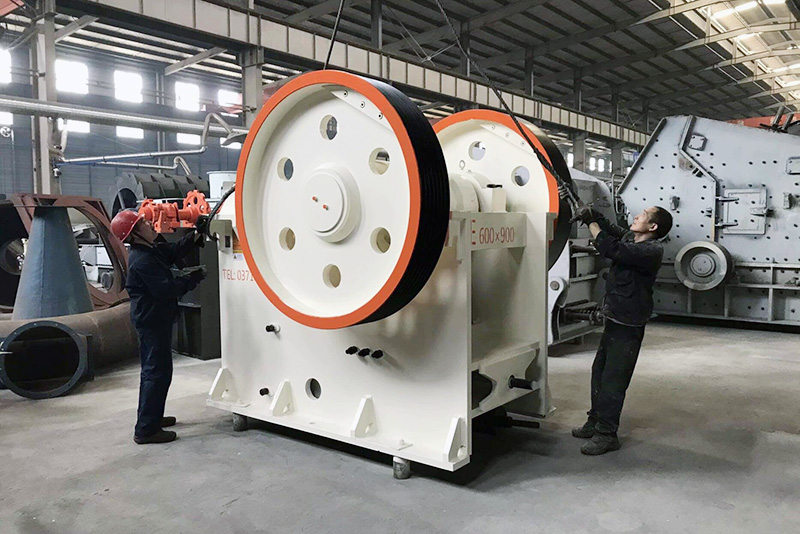

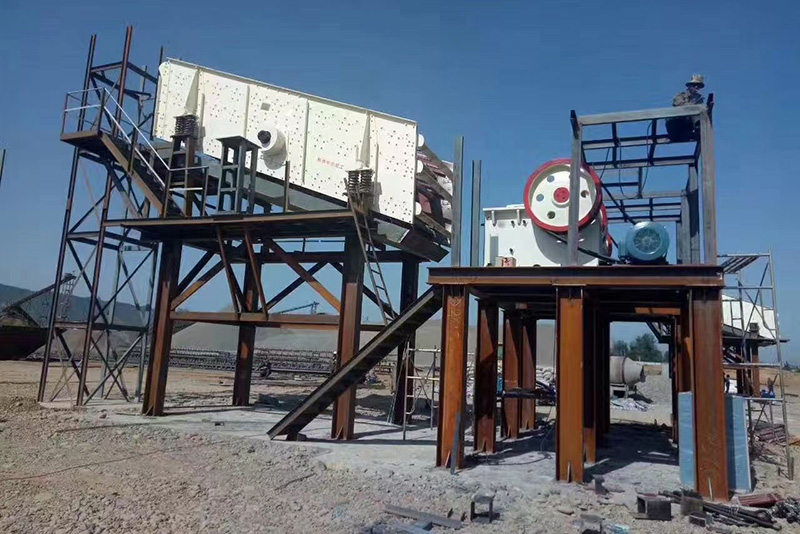

Product Photos

technical specifications

Model	Feeding Size(mm)	Discharge Gatesize (mm)	Capacity(t/h)	Motor Power(kw)	Overall Dimension(mm)
PE150×250	≤130	15-45	1-4	5.5	896×745×935
PE250×300	≤150	15-55	3-6	7.5	1050×987×1000
PE250×400	≤210	25-60	5-20	15	1215×1520×1030
PE400×600	≤350	40-90	15-60	30	1650×1588×1050
PE500×750	≤425	50-100	40-110	45	1956×1918×1920
PE600×900	≤500	60-125	90-180	55	2250×2733×2280
PE800×900	≤600	80-140	100-220	75	2450×2950×2490
PE750×1060	≤630	60-150	110-380	110	2531×2455×2783
PE900×1060	≤700	100-160	230-390	110	2900×2657×2950
PE900×1200	≤750	110-165	220-450	132	3100×2760×3260
PE1000X1200	≤900	110-185	315-500	132	3200×2760×3260
PE1200×1500	≤950	115-195	550-1000	220	3710×3446×4075
PE1500×1800	≤1200	135-225	600-1200	280	5100×4700×4300
PEX150×750	≤120	10-40	8-25	15	1310×1118×1145
PEX250×750	≤210	15-50	15-35	22	1400×1751×1515
PEX350×750	≤300	15-50	18-40	30	1485×1680×1648
PEX250×1000	≤210	15-60	15-60	30	1550×1964×1380
PEX250×1200	≤210	15-60	20-60	37	1530×1946×1380
PEX300×1300	≤250	25-60	16-105	55-75	2000×2320×1730

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
