PRODUCT INTRODUCTION

High-precision heavy-duty rotor with large moment of inertia achieves higher crushing efficiency.

PF impact crusher is an energy-saving crushing equipment, which can process all kinds of coarse, medium and fine materials with a side length of 100~600 mm or less and a compressive strength of not more than 350 MPa.

PF impact crusher is an impact crusher developed by our company in the process of absorbing advanced technology and combining with the industrial and mining of domestic sand and gravel industry. Special structural design, advanced manufacturing technology, widely used in railway, highway, energy, building materials, chemical and other industries in the crushing of bottom abrasive materials below medium hardness.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

The product is in good shape and easy to operate

The shape of the product is a cube, and the size of the discharge can be adjusted, which simplifies the operation process.

Applicable materials with a wide range of hardness and low energy consumption

The plate hammer of the impact crusher is firmly fixed on the rotor by a mechanical clamping structure. When it rotates with the rotor, it has a large moment of inertia, which is suitable for crushing harder materials and has low energy consumption.

Special structure, wear-resistant

Keyless connection, strong rigidity, large rotor inertia, high chromium plate hammer, impact resistance and wear resistance.

Superior performance and reliable operation

The impact crusher has a light and reasonable structure design, mature crushing technology, and has a reliable and stable quality assurance.

WORKING PRINCIPLE

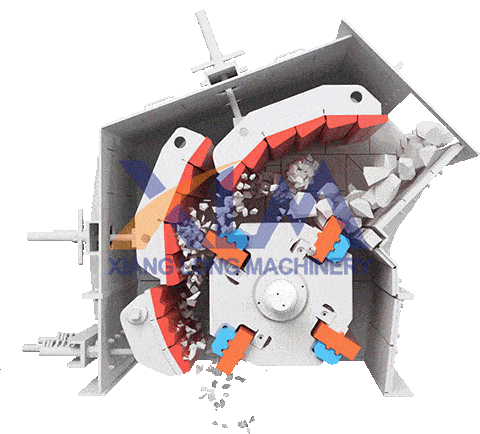

Impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the plate hammer, it will collide with the plate hammer on the rotor and be broken, and then be thrown to the counterattack device to be broken again, and then it will be broken again from the counterattack lining plate. It bounces back to the action area of the plate hammer to be broken again. This process is repeated. The material enters the first, second and third counterattack chambers from large to small for repeated crushing until the material is broken to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can achieve the purpose of changing the material discharge particle size and material shape.

Impact Crusher

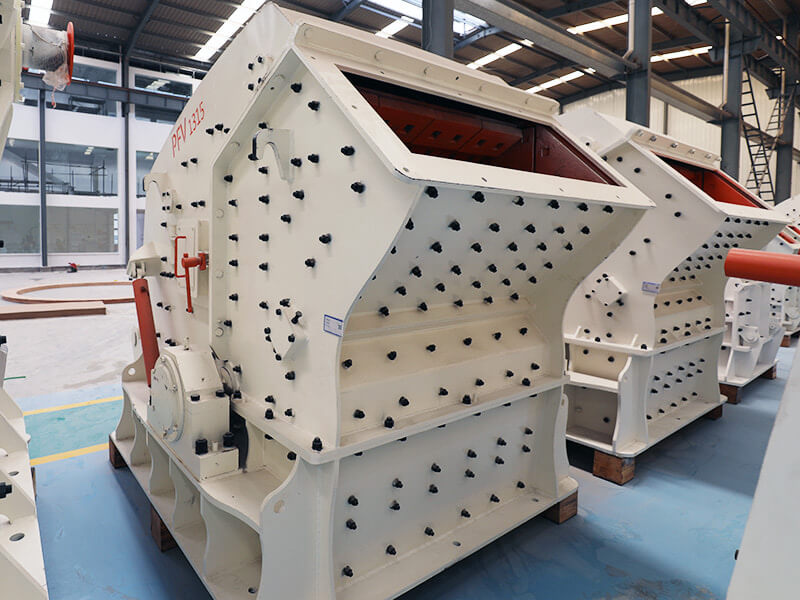

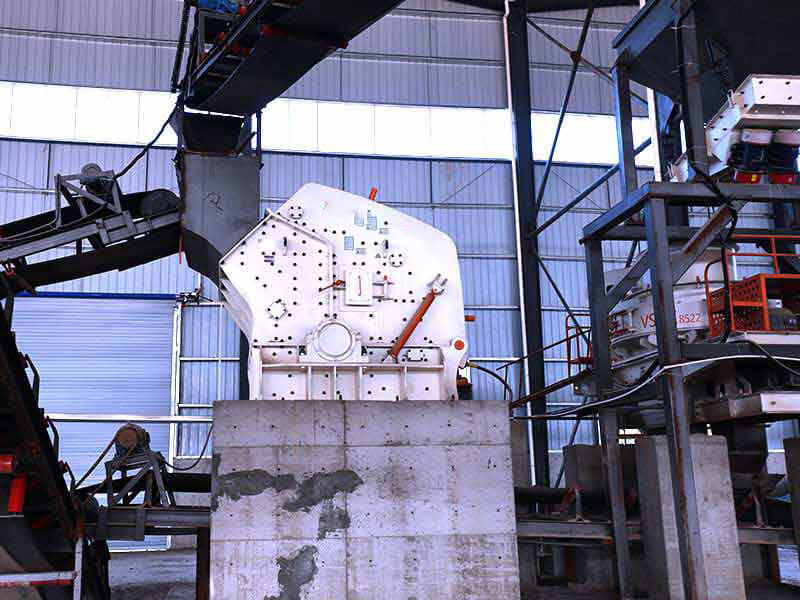

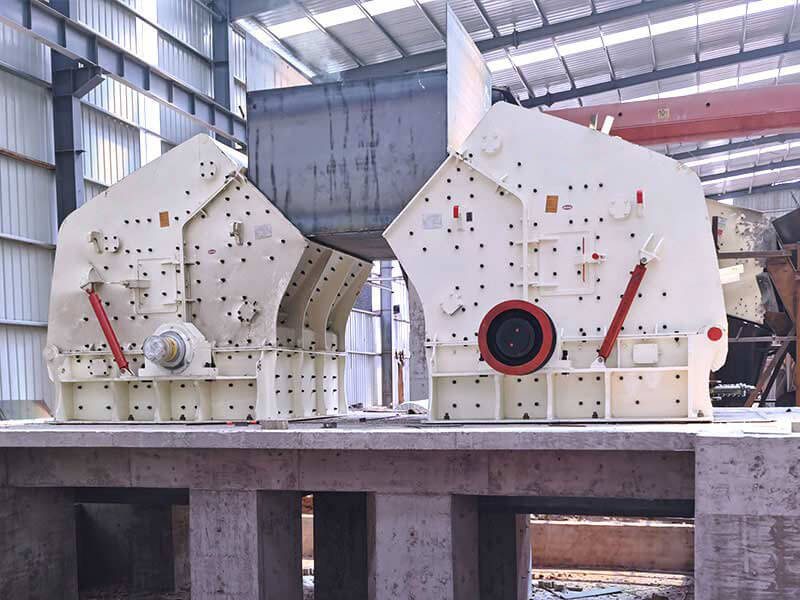

Product Photos

technical specifications

Model	Specification	Feeding Opening Size(mm)	Feeder Size (mm)	Capacity (t/h)	Motor Power(kw)	Overall Dimension(mm)
PF-1007	Φ1000 × 700	400 x 730	≤250	15-60	45	2319 x 1654 x 2558
PF-1010	Φ1000 × 1050	400 x 1080	≤300	50-90	55	2319 x 2001 x 2558
PF-1210	Φ1250 × 1050	450 x 1060	≤300	80-150	90	2585 x 2053 x 2809
PFV-1214	Φ1250 × 1400	450 x 1440	≤300	100-200	132	2582 x 2403 x 2809
PFV-1315	Φ1320 × 1500	550 x 1530	≤350	130-280	160	2930 x 2761 x 3053
PFV-1320	Φ1320 × 2000	610 x 1900	≤500	180-400	220	3224 x 3175 x 2706
PFV-1520	Φ1500 x 2000	830 x 2040	≤700	300-550	(220-250)x2	3959 x 3564 x 3330
PFV-1820	Φ1800 x 2000	1260 x 2040	≤800	600-800	630-710	4400 x 3866 x 4009

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
