Features

Full hydraulic control, convenient and fast

The equipment adopts hydraulic adjustment discharge port, hydraulic protection and hydraulic cavity cleaning device, which has a high degree of automation, reduces downtime, saves the user's manpower and material investment, and greatly improves its reliability and life.

Adopt lamination crushing, the finished product has excellent particle shape

Through the special crushing cavity designed by the principle of intergranular lamination and the matching speed, the selective crushing of materials is realized, which effectively improves the proportion of fine materials and the content of cubes.

Simple structure and easy maintenance

The equipment is simple in structure and easy to operate, and all parts can be disassembled and repaired from the top or side, which makes the maintenance and repair of the equipment very convenient, saving time and effort.

Thin oil lubrication, improve service life

The unique thin oil lubrication system design and high-performance non-contact labyrinth seals are used without wear, which improves the reliability of blocking dust and greatly improves the service life of the equipment.

WORKING PRINCIPLE

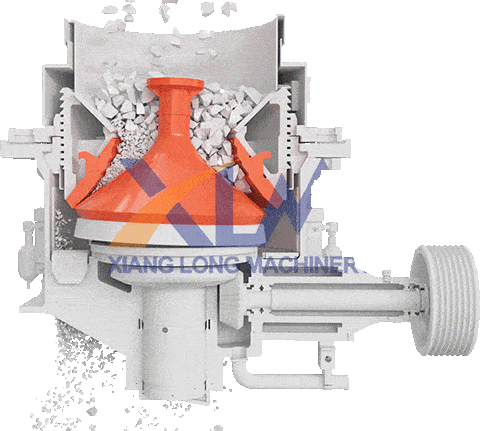

The fully hydraulic cone crusher is composed of an upper frame and a fixed cone, an adjustment ring, a lower frame, a fixed central shaft, a moving cone and a spherical bush, an eccentric sleeve and a sector gear, a pinion and a horizontal shaft, a peripheral hydraulic cylinder, a hydraulic station, a lubrication station, etc. When working, the rotation of the motor drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic swing motion below the axis line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic insurance system can remove the faulty objects from the support sleeve and the top of the fixed cone through hydraulic pressure when the machine has an iron fault or a jamming phenomenon. While playing a good insurance role, it greatly reduces the maintenance rate and improves production efficiency.

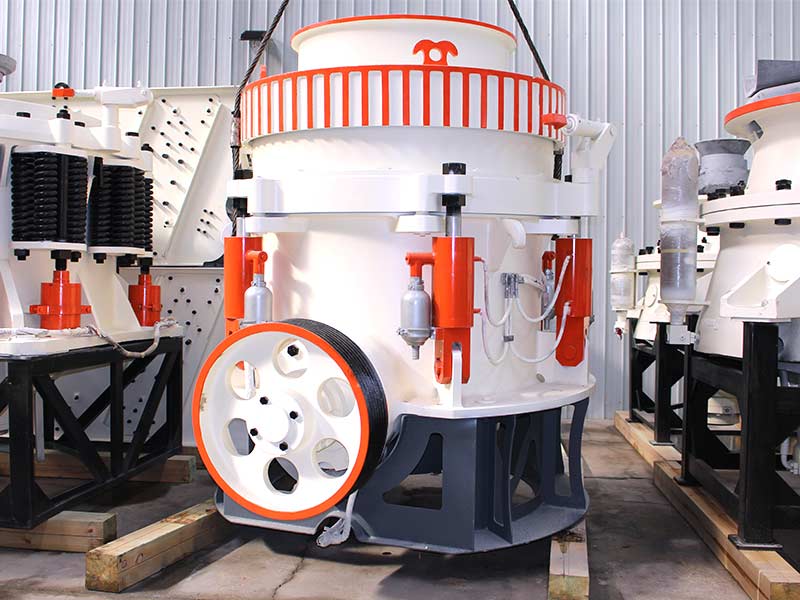

Cone Crusher

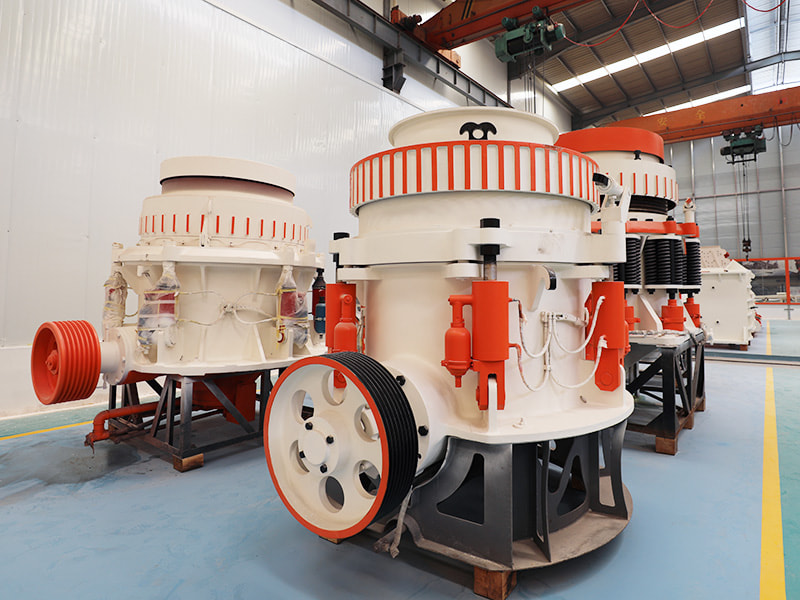

Product Photos

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.

Model	Movable Cone Diameter(mm)	Cavity Type	Feeding Size(mm)		Discharging Opening Size(mm)	Main Shaft Speed(r/min)	Motor Power(kw)	Capacity(t/h)	Overall Dimension(mm)
Model	Movable Cone Diameter(mm)	Cavity Type	Feeding Size(mm)	Opening Size(mm)	Discharging Opening Size(mm)	Main Shaft Speed(r/min)	Motor Power(kw)	Capacity(t/h)	Overall Dimension(mm)
SHQ300	910	Fine Coarse	83 159	102 175	9-22 13-38	580	75	48-96 65-168	2821 × 1880 × 2164
SHQ400	1200	Fine	127	131	9-31	485	110-160	68-192	2821 × 1974 × 2651
		Medium	156	156	13-38			105-205
		Coarse	178	191	19-51			146-308
SHQ500	1395	Fine	155	173	25-65	485	220-250	180-290	3360 × 2650 × 3050
		Medium	188	198	22-50			220-335
		Coarse	230	245	19-45			235-575
SHQ600	1650	Fine	188	209	16-38	485	250-280	186-332	3911 × 2870 × 3771
		Medium	213	241	22-51			263-422
		Coarse	241	268	25-64			304-640
