PRODUCT INTRODUCTION

During the processing, this machine can transfer the bulk, granular materials to the crushers from the stock bin evenly and continuously in the given time. In the stone and sand production lines, it can feed the crushing equipments continuously and screen the materials coarsely. It is widely used in the crushing and screening equipments of metallurgy, coal, chemical industry, construction material, grinding industry, etc. With a smooth vibration, reliable, simple structure, to prevent dust pollution and so on.

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Design

Special grate bar design can prevent material clogging, and play a primary screening of materials, thereby increasing production

Smooth vibration and reliable work

The spring device buffers the vibration of the body, effectively avoids damage to the body, and prolongs the service life

High quality motor

The vibration motor is the excitation source, with low noise, low power consumption, good adjustment performance, and no material punching phenomenon.

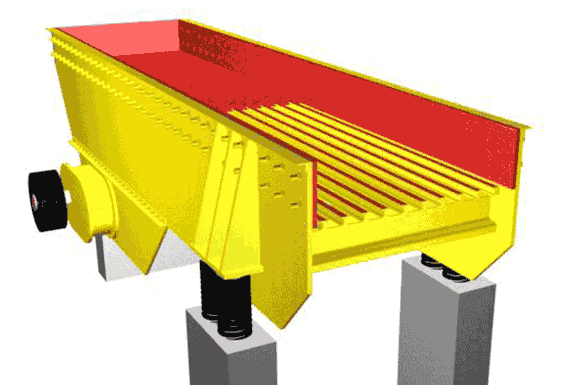

WORKING PRINCIPLE

The electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.

0 (4).gif

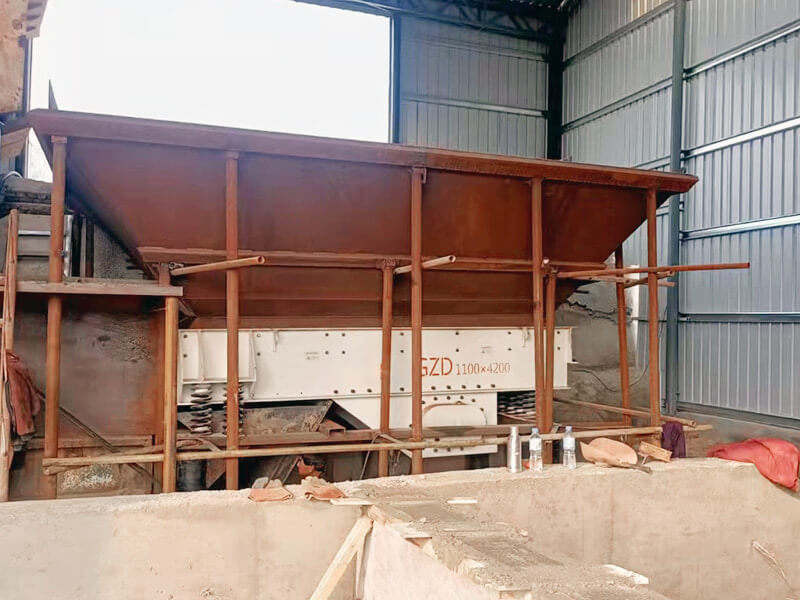

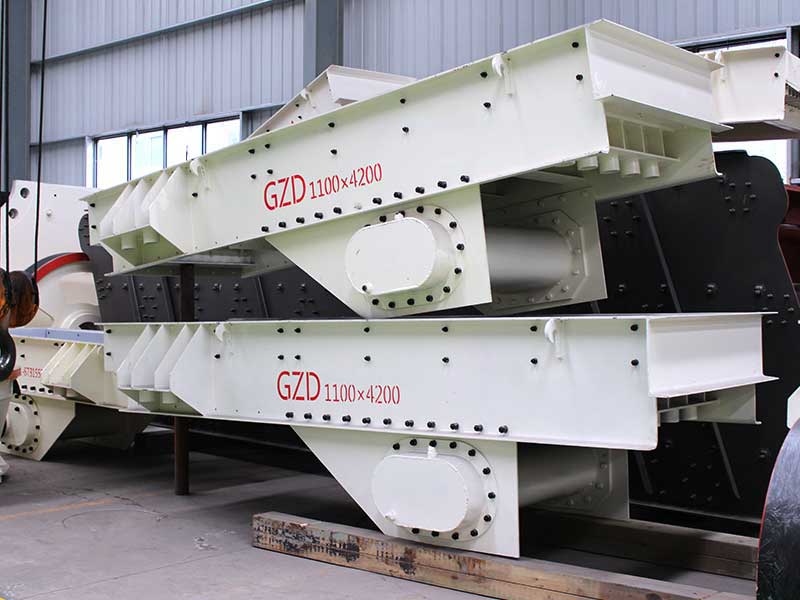

Product Photos

technical specifications

Model	Size of Trough(mm)	Feeding Size(mm)	Motor Power(kw)	Capacity(t/h)	Overall Dimension(mm)
GZD-650X2300	650X2300	≤300	1.1X2	80	2300X1360X780
ZSW-850X3000	850X3000	≤400	7.5X11	80-120	3110X1800X1600
ZSW-960X3800	960X3800	≤500	11-15	120-210	3850X1950X1630
ZSW-1100X4200	1100X4200	≤580	18.5	200-430	4400X2050X1660
ZSW-1100X4900	1100X4900	≤580	18.5	280-500	5200X2050X1700
ZSW-1300X4900	1300X4900	≤650	22	450-600	5200X2350X1750
ZSW-1300x6000	1300x6000	≤700	30	450-680	6100X2350X1750
ZSW-1500X6000	1500X6000	≤1000	37	400-800	6100X2550X1860

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
